MicroPET PSF
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

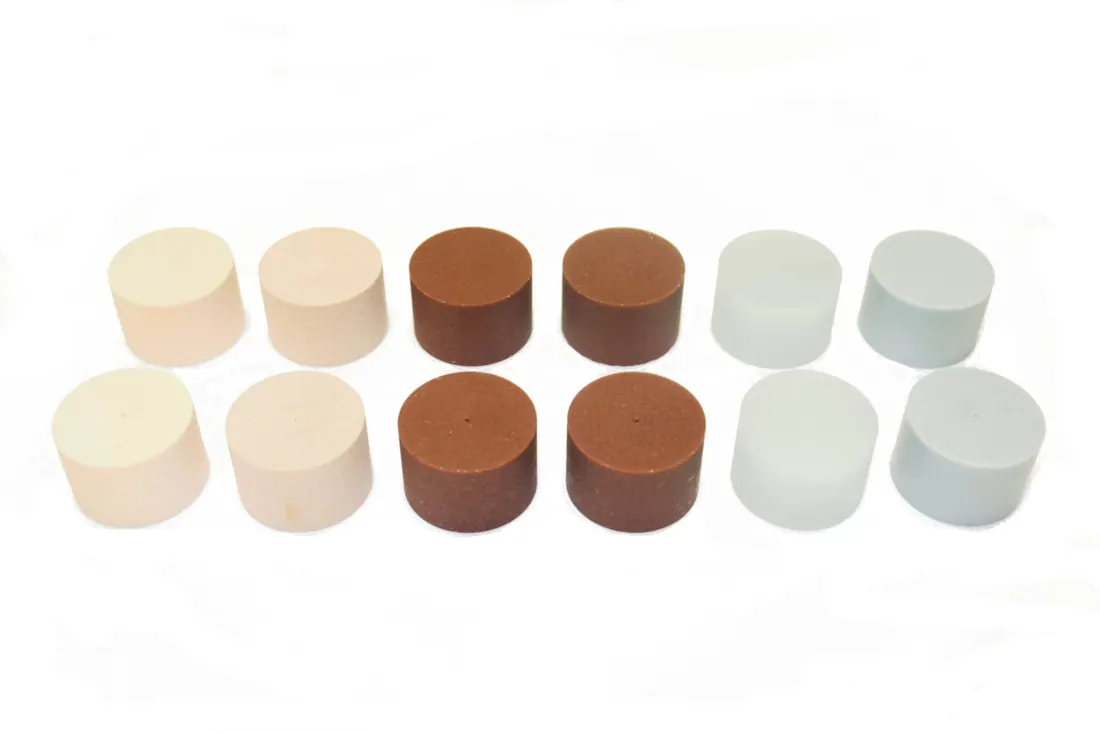

A tissue equivalent point spread function phantom for pre-clinical PET systems. It comprises pairs of cylinders in six tissue equivalent materials, one solid and one with a central hole to take a capillary filled with radionuclide.
Plan your specification
Confirm the MicroPET PSF material and capillary arrangement
MicroPET PSF uses paired tissue-equivalent cylinders for preclinical PET assessment. Specify the research measurement and the components needed to reproduce it.
- Material configuration
- Leeds lists six tissue-equivalent materials, each with a solid cylinder and a matching cylinder with a central hole. Confirm the complete material set and item dimensions in the current offer.
- Capillary and scanner fit
- The manufacturer describes a 0.75 mm central hole for a capillary. Request confirmation of compatible capillary dimensions, supplied capillaries and positioning fixtures; the research team must approve source and handling arrangements.
- Records and replacement items
- Ask for instructions, material identification and the cleaning/storage requirements. Identify separately supplied holders, replacement capillaries, analysis software and any requested training.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Tissue equivalent materials | LN 330 lung inhale, LN 450 lung exhale, AP 7 adipose, WT 1 water, 50 mg/cm3 HA trabecular bone, 1200 mg/cm3 HA cortical bone |
| Specification | For each material one cylinder is solid and one has a central 0.75 mm diameter hole |
| Specification | Central hole accommodates a capillary filled with radionuclide |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Scanner make/model, usable geometry and positioning constraints
- Intended PSF measurement and analysis method
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
