PET CT MRI Cubes
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

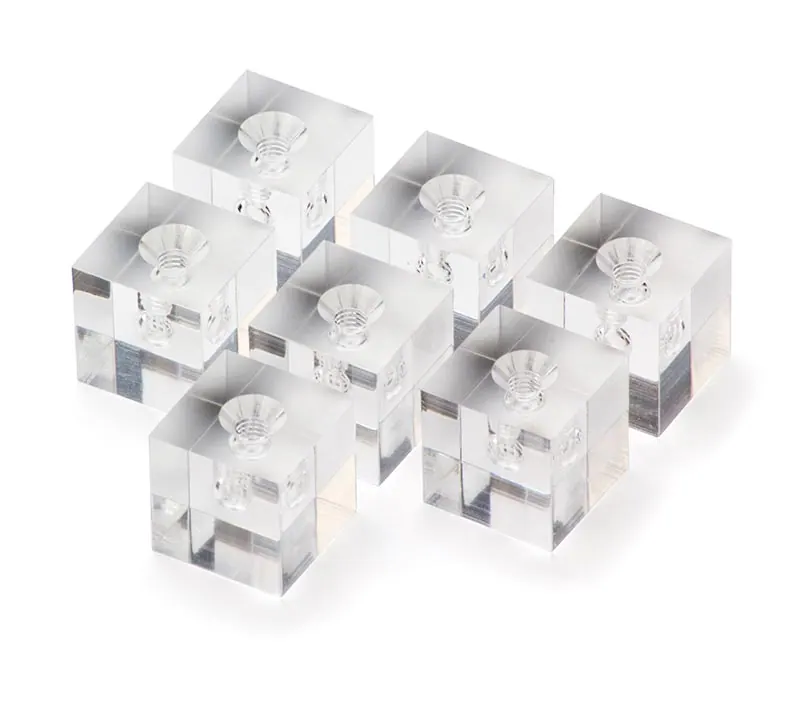

A set of seven clear PMMA cubes each holding a small fillable spherical void, used as point source markers for checking alignment between PET, CT and MR. They can be filled with a radionuclide, CT contrast agent or MR contrast agent and sealed with the nylon screw supplied.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Set of 7 clear PMMA cubes, 17 x 17 x 17 mm |
| Specification | 5 mm diameter spherical fillable void |
| Specification | Sealed with a nylon screw, provided |
| Specification | Used as point source markers, imaging aids for data set registration, and skin markers for clinical use |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Nuclear Medicine QA Phantoms
- PET IQ
An anthropomorphic PMMA body phantom for PET and PET/CT image quality testing. Six hollow fillable spheres screw into a plate on one face and can be filled with water for cold lesion imaging or with 18F FDG for hot lesion imaging.
- NU4 PET IQ
A small field of view PET image quality phantom designed for pre-clinical scanners. It allows testing of image quality, attenuation correction and scatter correction using fillable rods, fillable cylinders and a uniform section, to the NEMA NU4 standard.
- NEMA IEC Body Phantom Set, Model PET/IEC-BODY/P
This set is made up of a body phantom, a lung insert and an insert carrying six spheres of various sizes. Its design follows the recommendations of the International Electrotechnical Commission (IEC) as modified by the National Electrical Manufacturers Association (NEMA), and MiE recommend it for evaluating reconstructed image quality in whole body PET imaging. Listed applications include simulation of whole body imaging with PET and camera based coincidence techniques, determination of coincidence count rate characteristics in brain and cardiac imaging, evaluation of the relationship between true coincidence count rate and radioactivity, determination of address errors caused by address pile up, evaluation of the count loss correction scheme and research. MiE also supply customised phantoms on request.
