NEMA IEC Body Phantom Set, Model PET/IEC-BODY/P
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging

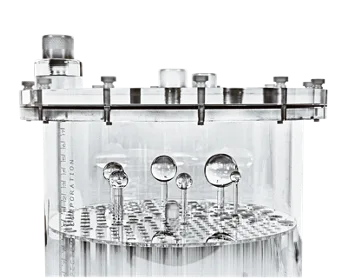

This set is made up of a body phantom, a lung insert and an insert carrying six spheres of various sizes. Its design follows the recommendations of the International Electrotechnical Commission (IEC) as modified by the National Electrical Manufacturers Association (NEMA), and MiE recommend it for evaluating reconstructed image quality in whole body PET imaging. Listed applications include simulation of whole body imaging with PET and camera based coincidence techniques, determination of coincidence count rate characteristics in brain and cardiac imaging, evaluation of the relationship between true coincidence count rate and radioactivity, determination of address errors caused by address pile up, evaluation of the count loss correction scheme and research. MiE also supply customised phantoms on request.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Phantom internal length | 180 mm |
| Fillable spheres | 6 |
| Sphere internal diameters | 10, 13, 17, 22, 28 and 37 mm |
| Sphere-plane distance to inner wall | 70 mm |
Selected configuration details published by MiE. Confirm the current supplied model, accessories and application-specific acceptance criteria. Shielding and source-related items require a design suitable for the proposed radionuclide and workload. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Imaging modality or beam, energy range and intended QA test
- Phantom/dosimeter geometry, detector/readout compatibility and calibration needs
- Required test inserts, analysis software, certificates and acceptance criteria
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
