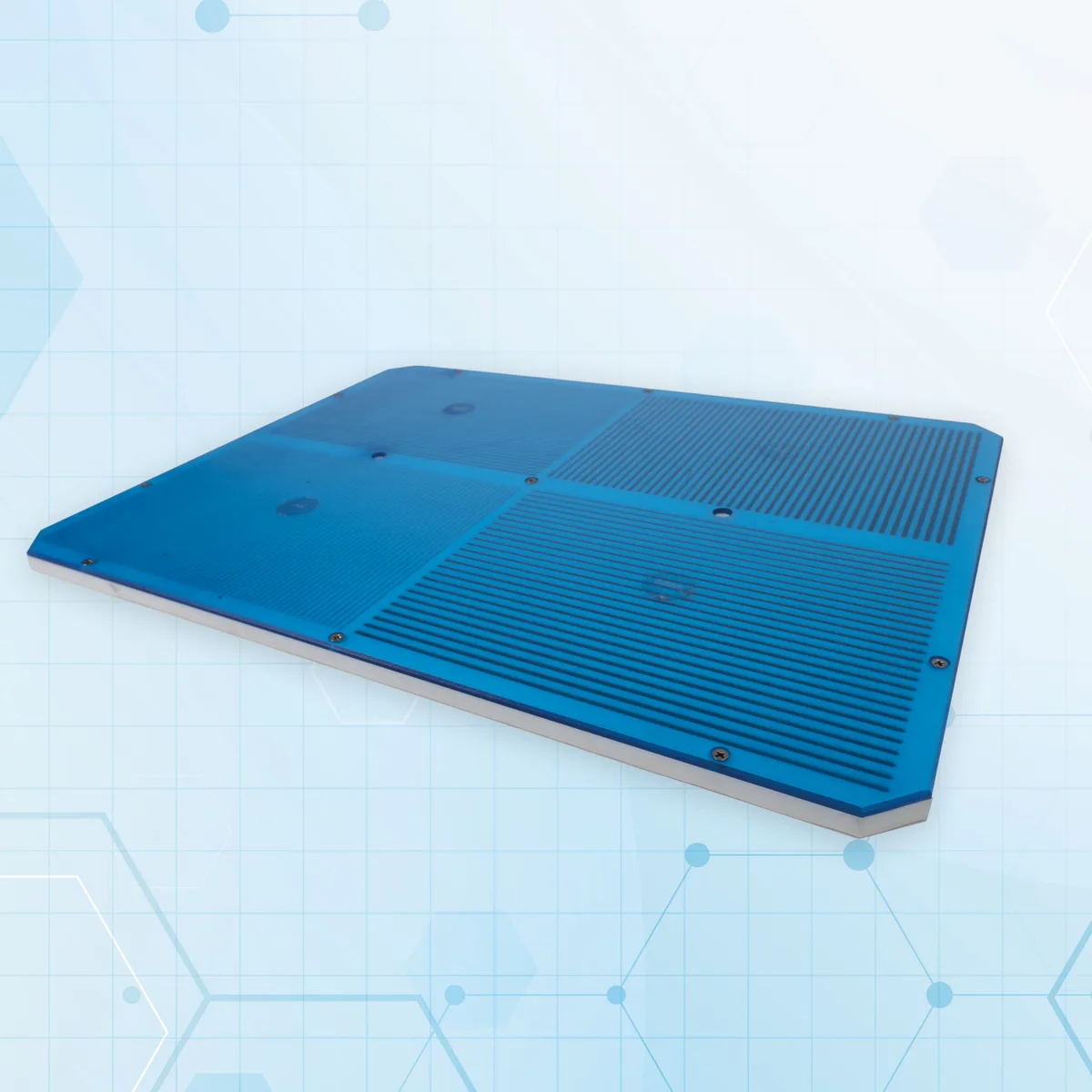

Four Quadrant Bar Phantom (Rectangular, Square and Circular)
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
MiE publish the four quadrant bar phantom in three formats. The Rectangular Bar Phantom measures 22 1/4 in x 17 in with bar sizes of 2 mm, 2.5 mm, 3 mm and 3.5 mm. The Square Bar Phantom is 16 7/8 in square with bar sizes of 1/8 in, 5/32 in, 1/4 in and 3/16 in. The Circular Bar Phantom is 16 in round with bar sizes of 2 mm, 2.5 mm, 3 mm and 3.5 mm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Bar sizes | 2, 2.5, 3 and 3.5 mm |
| Pattern | Four quadrants |
Selected configuration details published by MiE. Confirm the current supplied model, accessories and application-specific acceptance criteria. Shielding and source-related items require a design suitable for the proposed radionuclide and workload. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Imaging modality or beam, energy range and intended QA test
- Phantom/dosimeter geometry, detector/readout compatibility and calibration needs
- Required test inserts, analysis software, certificates and acceptance criteria
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
