PET IQ
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

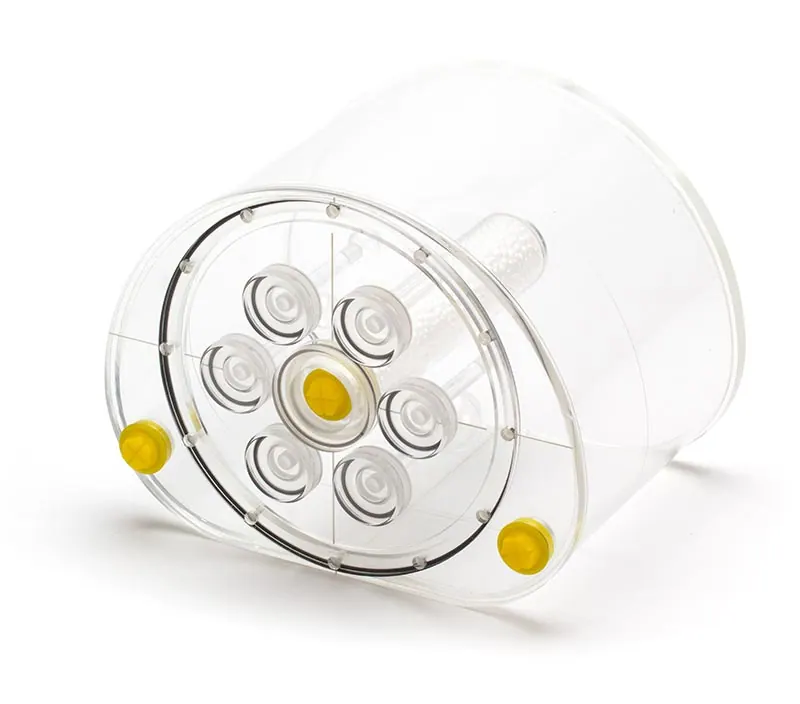

An anthropomorphic PMMA body phantom for PET and PET/CT image quality testing. Six hollow fillable spheres screw into a plate on one face and can be filled with water for cold lesion imaging or with 18F FDG for hot lesion imaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Six fillable spheres, inner active diameters 10, 13, 17, 22, 28 and 37 mm |
| Sphere wall thickness | 1 mm |
| Specification | Anthropomorphic PMMA vessel simulating the trunk of the human body |
| Specification | Supplied in a wheeled hard case with telescopic handle |
| Specification | Conforms to NEMA NU2 (2007) |
| Specification | Conforms to IEC 61675-1 (2008) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Nuclear Medicine QA Phantoms
- NEMA IEC Body Phantom Set, Model PET/IEC-BODY/P
This set is made up of a body phantom, a lung insert and an insert carrying six spheres of various sizes. Its design follows the recommendations of the International Electrotechnical Commission (IEC) as modified by the National Electrical Manufacturers Association (NEMA), and MiE recommend it for evaluating reconstructed image quality in whole body PET imaging. Listed applications include simulation of whole body imaging with PET and camera based coincidence techniques, determination of coincidence count rate characteristics in brain and cardiac imaging, evaluation of the relationship between true coincidence count rate and radioactivity, determination of address errors caused by address pile up, evaluation of the count loss correction scheme and research. MiE also supply customised phantoms on request.
- PET CT MRI Cubes
A set of seven clear PMMA cubes each holding a small fillable spherical void, used as point source markers for checking alignment between PET, CT and MR. They can be filled with a radionuclide, CT contrast agent or MR contrast agent and sealed with the nylon screw supplied.
- Four Quadrant Bar Phantom (Rectangular, Square and Circular)
MiE publish the four quadrant bar phantom in three formats. The Rectangular Bar Phantom measures 22 1/4 in x 17 in with bar sizes of 2 mm, 2.5 mm, 3 mm and 3.5 mm. The Square Bar Phantom is 16 7/8 in square with bar sizes of 1/8 in, 5/32 in, 1/4 in and 3/16 in. The Circular Bar Phantom is 16 in round with bar sizes of 2 mm, 2.5 mm, 3 mm and 3.5 mm.
