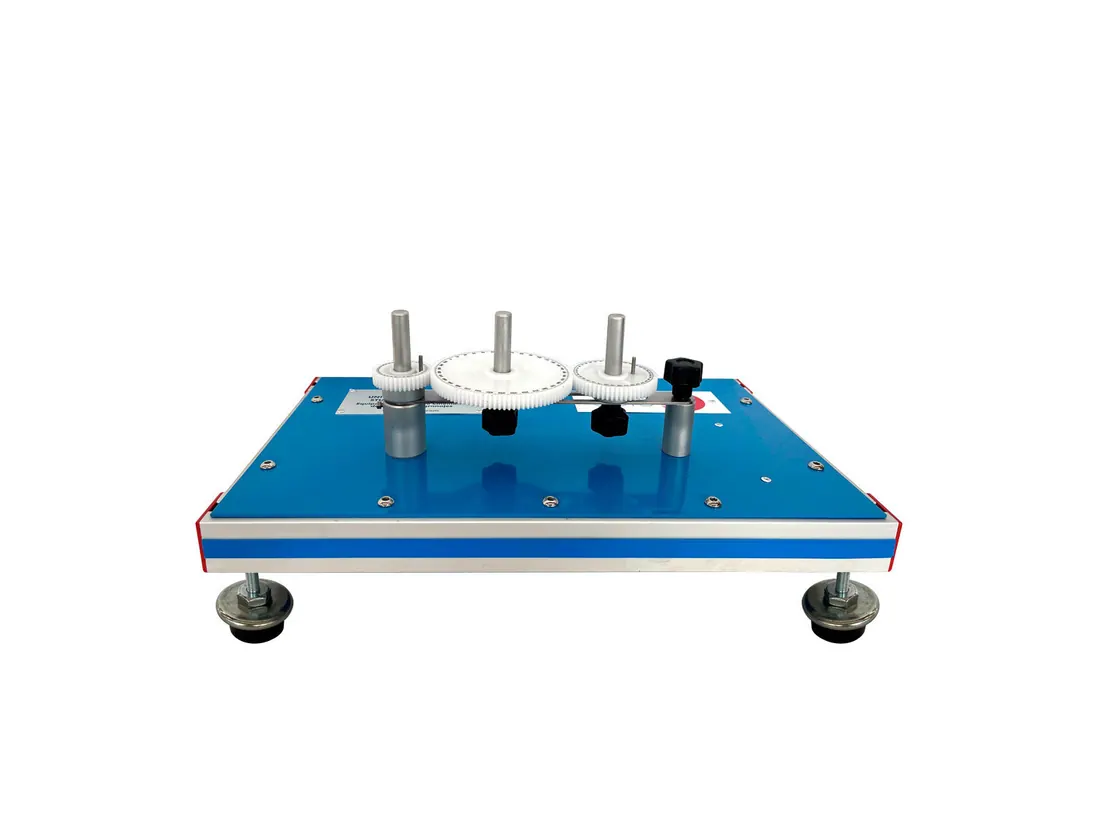

KSGT: Unit for the Kinematic Study of Gear Trains
Brand: EDIBON | Category: Scientific & Laboratory Equipment
KSGT is used for the kinematic analysis of gear trains, including epicyclic arrangements. Students hold different members fixed in turn and measure the resulting speeds to determine the train value by the tabular method.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 450 x 300 x 150 mm approx |
| Weight | 5 kg approx |
| Gears module | 1 mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
