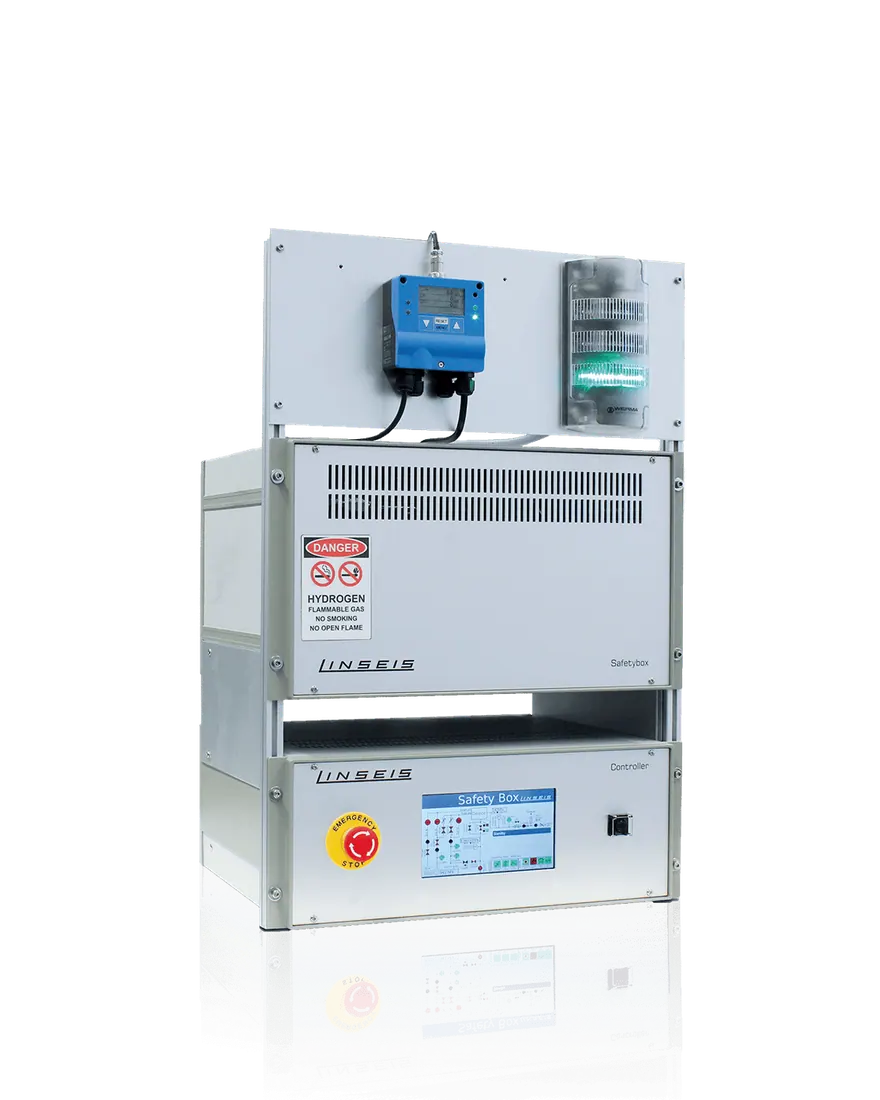

L40 GASSAFETY
Brand: Linseis | Category: Nanotechnology
The L40 GASSAFETY system monitors the gases around a thermal analysis instrument and reacts automatically. Its sensors can be prepared for hydrogen, methane, carbon monoxide, chlorine and other gases. An integrated 3-channel mass flow controller issues an emergency purge if a gas supply runs out.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Sensors can be prepared for different gases (H2, CH4, CO, Cl2 and others) |
| Specification | Detects an empty N2 cylinder if the pressure drops below the 4 bar threshold |
| Specification | Integrated 3-channel MFC with monitored set/actual flow deviation for issuing an emergency purge if sample or auxiliary gas runs out |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
