L40 Gas Dosing
Brand: Linseis | Category: Nanotechnology

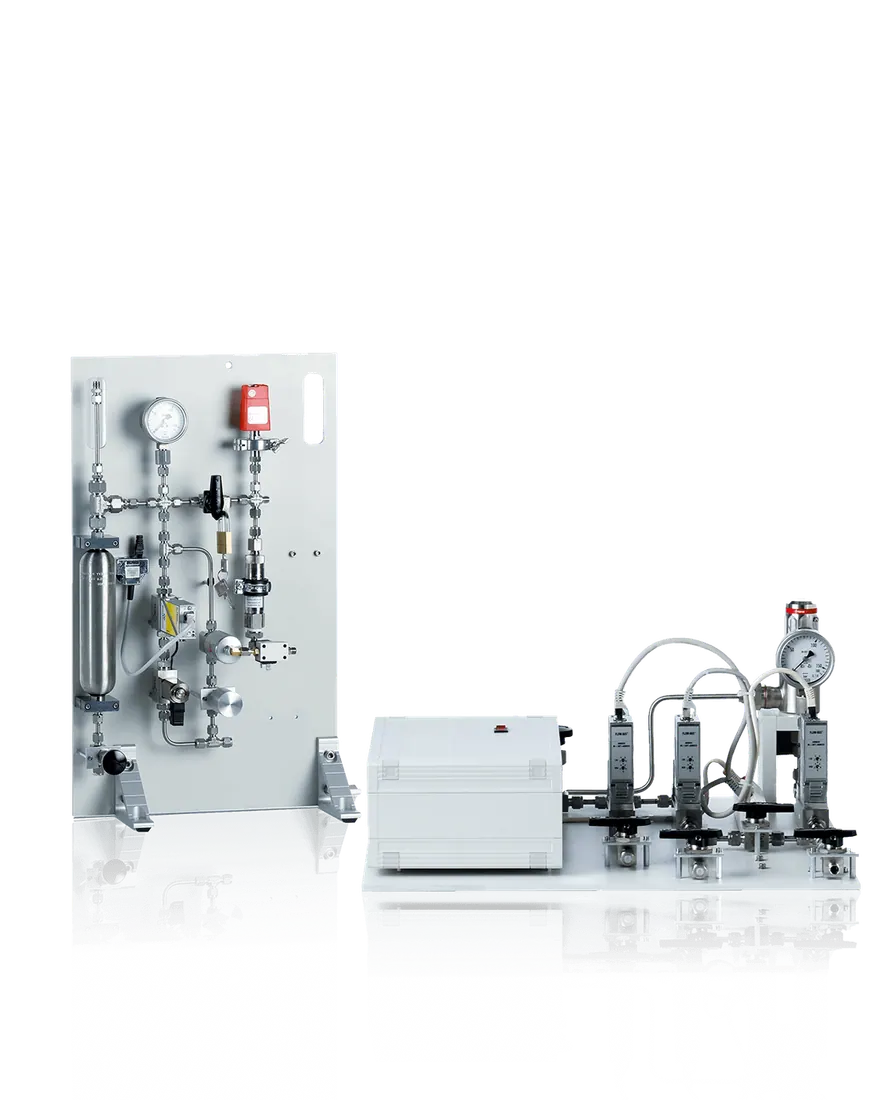

The L40 Gas Dosing series supplies and switches the gases around a sample during a thermal analysis run. Versions are available for ultra high vacuum, atmospheric pressure and high pressure work, with two to four gas lines dosed by electromagnetic valves or mass flow controllers.
Technical Specifications
| Parameter | Value |
|---|---|
| L40/2052 | 2 gas pipes, up to 1 bar, electromagnetic valve dosing |
| L40/2053 | 3 gas pipes, up to 1 bar, electromagnetic valve dosing |
| L40/2054 | 4 gas pipes, up to 1 bar, electromagnetic valve dosing |
| L40/2052/HP50 | 2+1 gas pipes (1 for pressure control), up to 50 bar, MFC dosing |
| L40/2054/HP50 | 4+1 gas pipes (1 for pressure control), up to 50 bar, MFC dosing |
| L40/2052/HP150 | 2+1 gas pipes (1 for pressure control), up to 150 bar, MFC dosing |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
