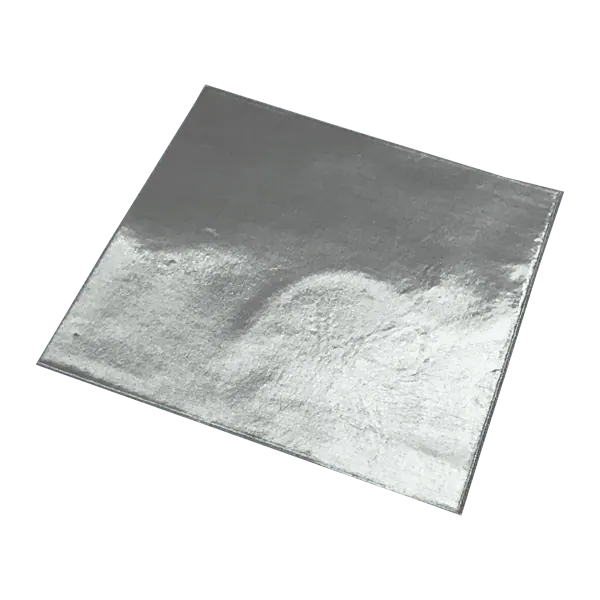

Miscellaneous Cryogenic Accessories
Brand: Lake Shore | Category: Nanotechnology
Lake Shore supplies assorted cryogenic accessories, including heat sinks, sample holders, cartridge heaters and vacuum feedthrough products. The HTR-50 cartridge heater is rated 50 W at 50 V into 50 ohms, and the HTR-25-100 is rated 100 W at 50 V into 25 ohms.
Technical Specifications
| Parameter | Value |
|---|---|
| HTR-50 cartridge heater | 25.4 +/- 2.4 mm (1 +/- 0.094 in), 50 V, 50 Ω, 50 W |
| HTR-25-100 cartridge heater | 25.4 +/- 2.4 mm (1 +/- 0.094 in), 50 V, 25 Ω, 100 W |
