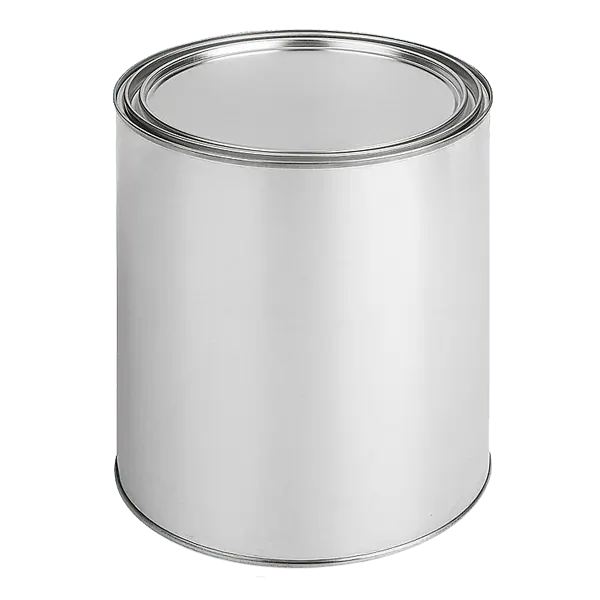

Varnish
Brand: Lake Shore | Category: Nanotechnology
VGE-7031 insulating varnish and adhesive is used to bond and anchor sensors and wire at cryogenic temperatures. It is rated to 423 K, has a dry dielectric strength of 118 kV/mm and a volume resistivity above 1 x 10^15 ohm metres. It dries tack-free in 5 to 10 minutes at 298 K.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 423 K (150 °C) |
| Thermal conductivity | 0.034 W/(m·K) at 1 K, 0.062 W/(m·K) at 4.2 K, 0.44 W/(m·K) at 300 K |
| Volume resistivity | >1 x 10^15 Ω·m |
| Dielectric strength (dry) | 118 kV/mm |
| Drying time (25 µm film, tack-free) | 5 min to 10 min at 298 K (25 °C); 2 min to 5 min at 398 K (125 °C) |
| Shelf life (298 K) | 12 months from the date on the can when stored at room temperature |
