Solder
Brand: Lake Shore | Category: Nanotechnology

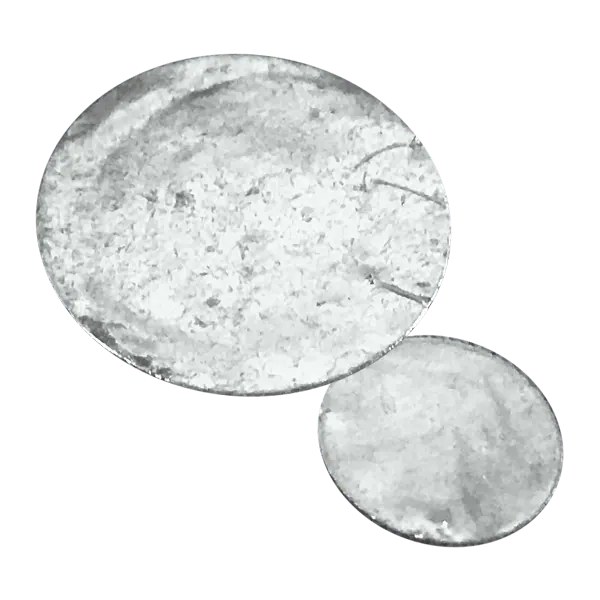

Lake Shore supplies solder for mounting sensors, making electrical connections and heat sinking wire in cryogenic assemblies. Indium foil melts at 430 K and has the highest thermal conductivity of the three at 84 W/(m·K), while Ostalloy melts at 343.16 K for low-temperature joints.
Technical Specifications
| Parameter | Value |
|---|---|
| Types | indium foil, high-temperature solder, Ostalloy |
| Melting point | 430 K (indium foil), solidus 548 K and liquidus 575 K (high-temperature), 343.16 K (Ostalloy) |
| Thermal conductivity at 293 K | 84 W/(m·K) indium foil, 35 W/(m·K) high-temperature, 18.6 W/(m·K) Ostalloy |
| Composition | 99.99% pure indium; 90% Pb 10% Sn; 50.0% Bi, 26.7% Pb, 13.3% Sn, 10.0% Cd |
| Density | 7.3 g/cm3 indium foil, 10.75 g/cm3 high-temperature, 9.67 g/cm3 Ostalloy |
| Tensile strength | 2.61 MPa to 3.55 MPa indium foil, 30 MPa high-temperature |
