Grease
Brand: Lake Shore | Category: Nanotechnology

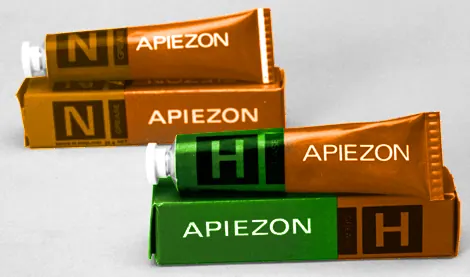

Lake Shore offers low-temperature and high-temperature grease for installing and fastening sensors where a removable joint is wanted. Apiezon type N melts at about 303 K and suits cryogenic work, while type H is rated to about 513 K. Both have very low vapour pressure for vacuum use.
Technical Specifications
| Parameter | Value |
|---|---|
| Types | Apiezon grease type N and type H |
| Approximate melting point | 303 K (30 °C) type N, 513 K (240 °C) type H |
| Thermal conductivity at 4.2 K | 0.095 W/(m·K) type N |
| Thermal conductivity at 300 K | 0.19 W/(m·K) type N, 0.22 W/(m·K) type H |
| Volume resistivity | 2 x 10^16 Ω·m type N, 4.6 x 10^13 Ω·m type H |
| Vapor pressure at 293 K | 2.27 x 10^-7 Pa (1.7 x 10^-9 Torr) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
