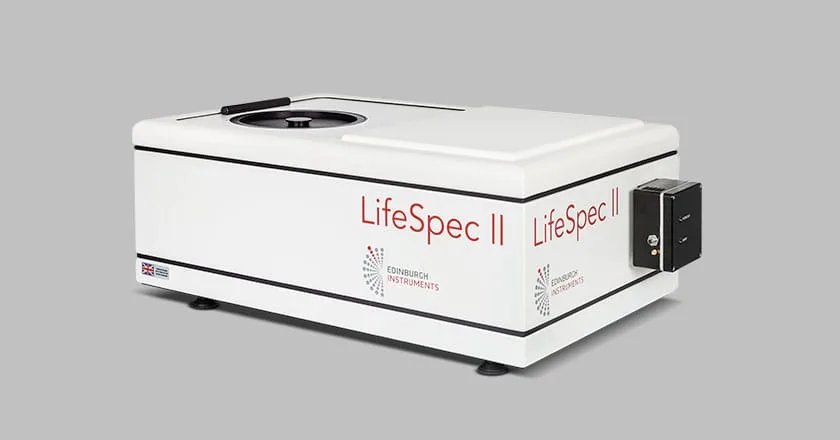

LifeSpec II: Fluorescence Lifetime Spectrometer
Brand: Edinburgh Instruments | Category: Nanotechnology
Dedicated fluorescence lifetime spectrometer using time-correlated single photon counting, with a 90 degree excitation and emission geometry. Temporal dispersion is negligible, which is what allows lifetimes down to 5 picoseconds to be resolved with a microchannel plate detector. A multi channel scaling upgrade extends the range to one second.
Technical Specifications
| Parameter | Value |
|---|---|
| Optical Configuration | 90° between excitation and emission beam path |
| Mode of Operation | Time-Correlated Single Photon Counting (TCSPC) Optional Multi Channel Scaling (MSC) Upgrade |
| Excitation Source Options | All high rep rate pulsed sources such as picosecond pulsed diode lasers (EPL Series, HPL Series) and LEDs (EPLED Series), supercontinuum pulsed lasers and femtosecond Ti:Sapphire lasers. |
| Lifetime Range | 5 ps – 10 µs (depending on source and detector choice) Up to 1 s with MSC upgrade |
| Detector Options | 230 nm – 650 nm, 230 nm – 850 nm, 500 nm – 1700 nm |
| Mechanical Spectral Range | 200 nm – 900 nm (standard) plus 800 nm – 2000 nm (optional for infrared PMT detectors) |
| Spectral Band Pass | 0 to 60 nm (computer controlled) |
| Temporal Dispersion | Zero (negligible) |
| Laser Beam Attenuation | 4 orders of magnitude, continuously adjustable (computer controlled) |
| Spectrometer Software | F980 Software complete package for data acquisition and lifetime data analysis. |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
