Plate Readers PR2 and SC-41: Microplate Reader Accessories
Brand: Edinburgh Instruments | Category: Nanotechnology

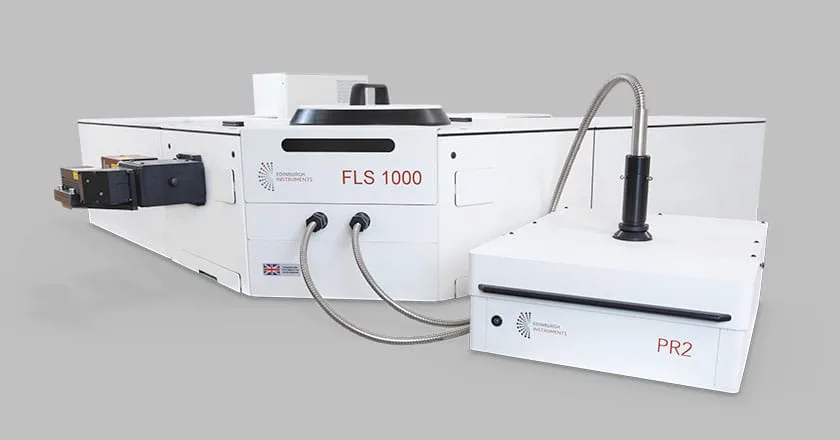

Microplate reader accessories for the FLS1000 and FS5 spectrometers, measuring fluorescence spectra and lifetimes from hundreds of wells in one acquisition while keeping photon counting sensitivity. The PR2 is the external module for the FLS1000, the SC-41 the internal module for the FS5.
Model specifications
Compare the named models or configurations. Confirm options and included accessories in your quotation.
| Typical Performance | PR2 | SC-41 |
|---|---|---|
| Repeatability (96 well) | <0.5% | <1.5% |
| Repeatability (384 well) | <5% | <3% |
| Crosstalk (96 well) | <0.001% | <0.1% |
| Crosstalk (384 well) | <0.05% | <5% |
| Well-to-well repeatability | <5% | <3% |
| Sensitivity | 1 pM fluorescein | 40 pM fluorescein |
| Spectral range | 250 nm – 900 nm or 400 nm – 2,000 nm (fibre dependent) | Excitation 250 nm – 900 nm Emission 250 nm – 1,650 nm |
| Dimensions (mm) | 401 x 320 x 135 | 320 x 245 x 265 (internal to FS5) |
Manufacturer catalogue checked 2026-09-29.
Typical performance published for two different accessories: PR2 and SC-41. Wavelength coverage depends on the fibre or host-instrument configuration. Compare each column separately and confirm the host spectrometer and required plate format.
