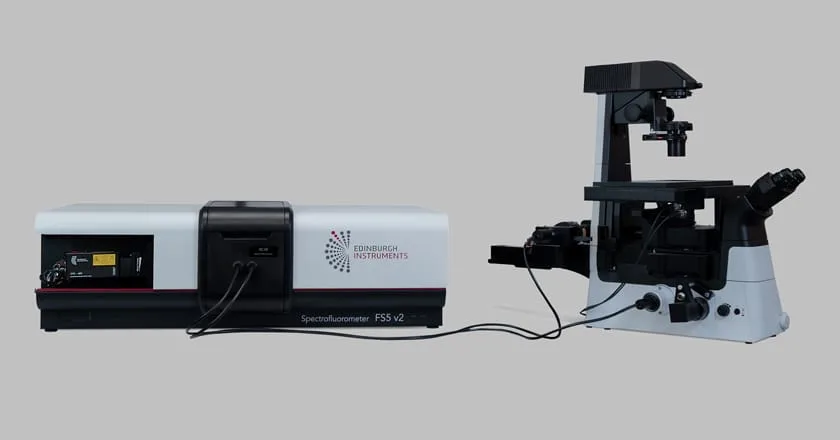

MicroPL: Microspectroscopy Upgrade
Brand: Edinburgh Instruments | Category: Nanotechnology
Upgrade that couples a microscope to an FLS1000 or FS5 spectrometer, so photoluminescence spectra and lifetimes can be taken from a selected point on a sample rather than from a bulk volume. It turns the spectrometer into a combined spectroscopy and microscopy system.
Technical Specifications
| Parameter | Value |
|---|---|
| Standard excitation/emission range | 360–850 nm |
| Objective magnification options | 5× to 100× |
| Motorised XY stage travel options | 75 × 50 mm or 130 × 85 mm |
| Published XY stage resolution | 0.01 µm |
| Published Z stage resolution | 0.002 µm |
| Microscope options | Upright Nikon NiU or Olympus BX53; inverted Nikon Ti2U |
Selected MicroPL configuration options from Edinburgh Instruments. The published stage resolution is not an optical spatial-resolution claim. Wavelength extensions require non-standard objectives; confirm microscope, objectives, stage, spectrometer and software compatibility together. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
