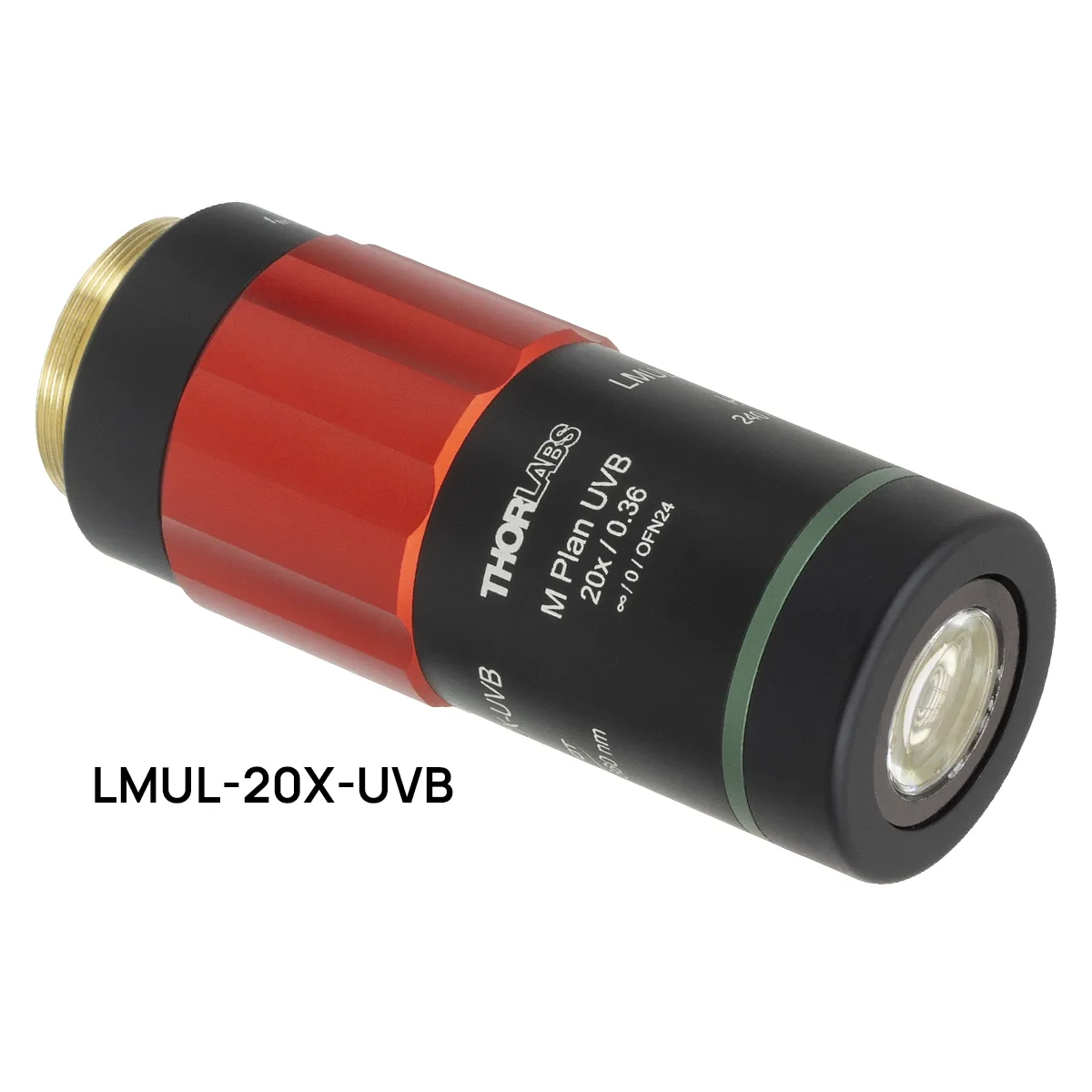

Long Working Distance Objectives (LMU and M Plan Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Infinity corrected objectives with an unusually large gap between the front element and the sample, for ultraviolet, visible or near infrared use. The long working distance suits machine vision, wafer inspection and experiments that need access under the objective.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnifications | 5X, 7.5X, 10X, 20X, 50X and 100X |
| LMUL-10X-UVB | NA 0.25, working distance 20.0 mm |
| LMUL-50X-UVB | NA 0.42, working distance 12.0 mm |
| Design tube lens focal length | 200 mm; parfocal length 95.0 mm |
| Threading | W26 x 0.706, threading depth 5 mm |
| Specification | UVB AR coating range 240 to 360 nm, reflectance less than 1.5% per surface |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
