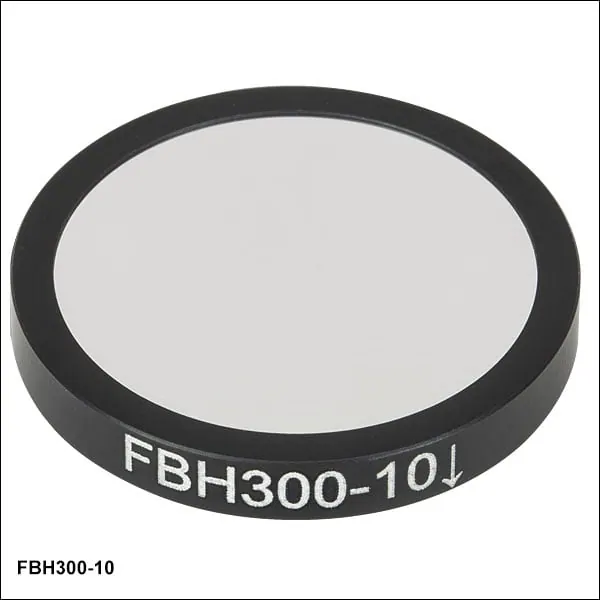

Hard-Coated UV and Visible Bandpass Filters (FBH and FLH Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Ion beam sputtered bandpass filters with high in-band transmission and deep out-of-band blocking, mounted in black anodised aluminium rings. They isolate a laser line or fluorescence band in spectroscopy and imaging setups.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Pass regions from 1 nm to 85 nm full width at half maximum |
| Transmission at centre wavelength | greater than 90% for 355 to 694 nm models |
| Out of band blocking | optical density 5 or better for 355 to 694 nm centre wavelengths |
| Housing diameters | 12.5 mm or 25.0 mm, or M27 x 0.5 mounted |
| Substrate | UV fused silica; angle of incidence 0 degrees |
| Operating temperature | -40 to 90 degrees C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
