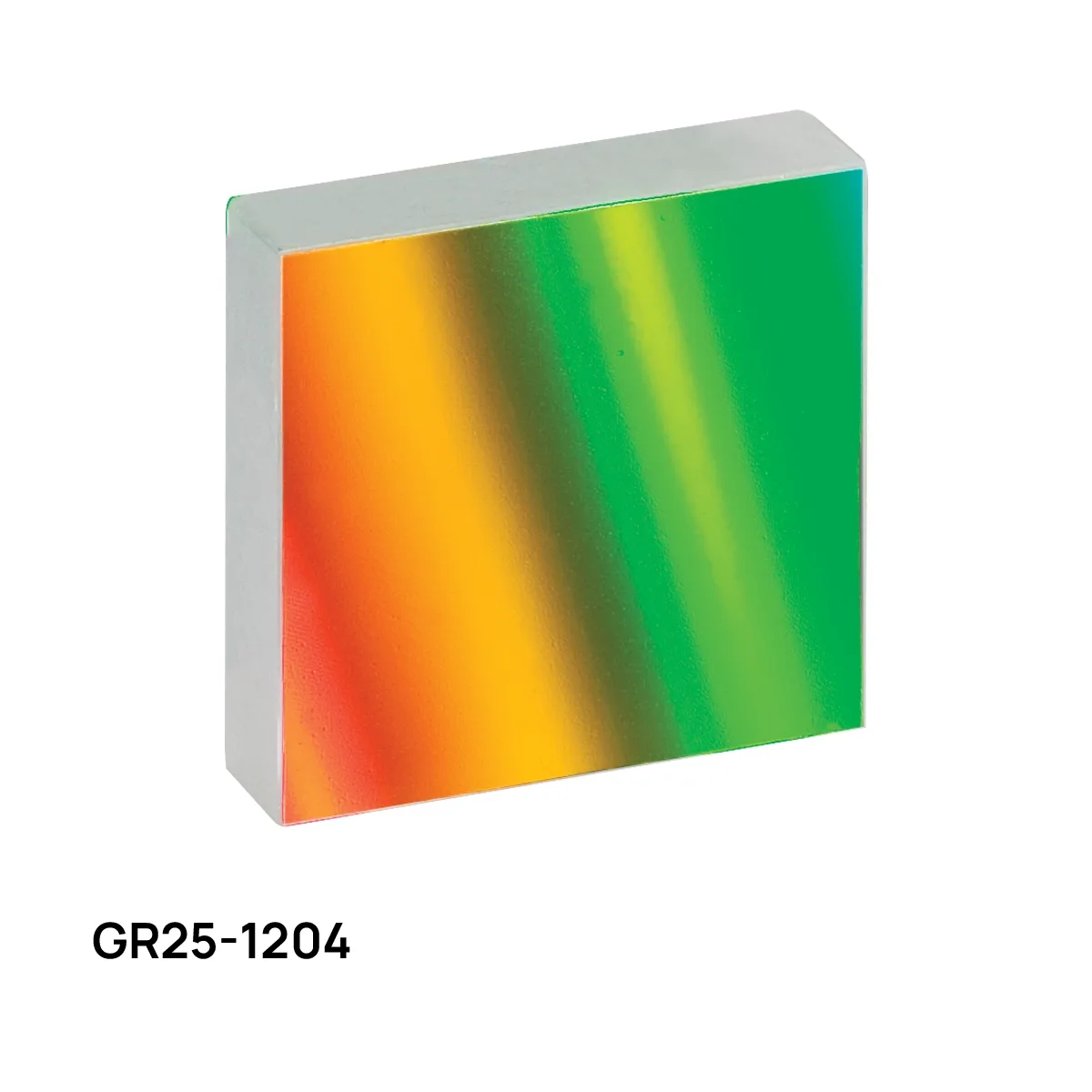

Visible Ruled Reflective Diffraction Gratings (GR Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Aluminium coated ruled gratings blazed for the visible, produced from a ruled original on a soda lime glass substrate. They give high first order efficiency near the blaze wavelength for spectroscopy and monochromator builds.
Technical Specifications
| Parameter | Value |
|---|---|
| Blaze wavelengths | 400 nm or 500 nm |
| Grating efficiency | 60% to 80% at the blaze wavelength |
| Groove densities | 300 to 1200 grooves per mm |
| Ghosting | less than 0.5% of the parent line |
| Coating | aluminium reflective; substrate soda lime glass |
| Specification | Produced from a ruled original |
