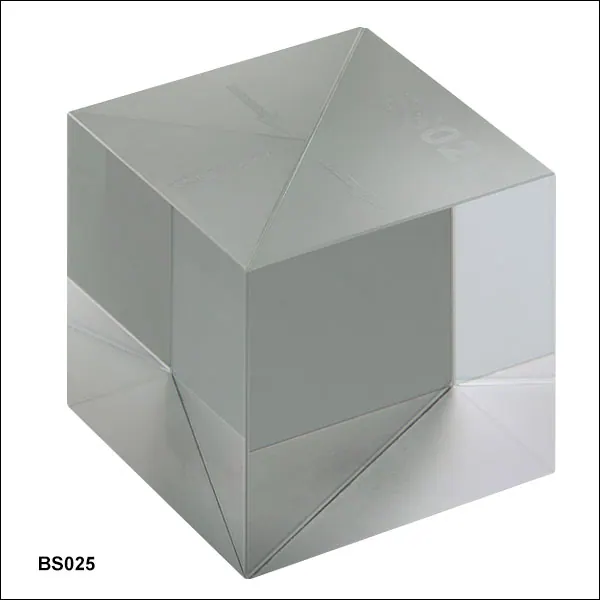

Non-Polarizing Cube Beamsplitters, 400 to 700 nm (BS Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Cemented N-BK7 cubes that divide a beam with little dependence on its polarisation, in five split ratios. The single reflecting surface avoids ghost images and the cube geometry keeps the transmitted beam free of lateral offset.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength range | 400 to 700 nm |
| Split ratios | 10:90, 30:70, 50:50, 70:30 and 90:10 reflection to transmission |
| AR coating on all four faces | average reflectance less than 0.5% at 0 degrees AOI |
| Substrate | N-BK7; surface quality 40-20 scratch-dig |
| Reflected beam deviation | 90 degrees plus or minus 5 arcmin |
| Specification | Sizes from 5 mm to 2" (50.8 mm) |
