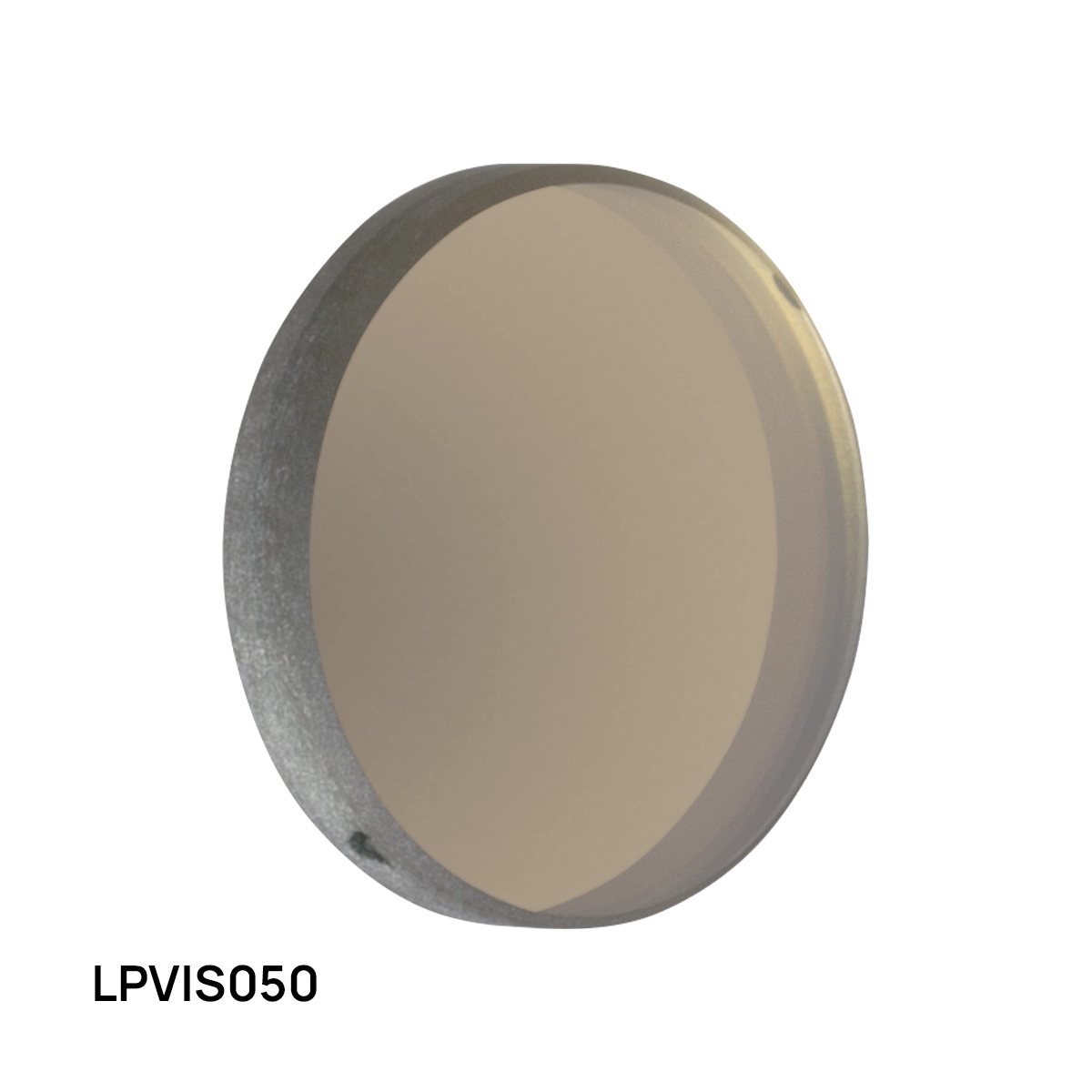

Nanoparticle Linear Film Polarizers (LP Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Sheet polarisers made from nanoparticles in sodium-silicate glass, covering the UV through to the mid infrared in eleven wavelength bands. Mounted versions thread into SM lens tubes and rotation mounts for polarisation experiments.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Wavelength bands from 365 to 395 nm up to 1.50 to 5.00 micrometres |
| Extinction ratios up to 100 000 | 1 |
| Optic diameters | 12.5 mm or 25.0 mm |
| Acceptance angle | plus or minus 20 degrees |
| Wavefront distortion, unmounted | less than lambda/4 at 633 nm |
| CW damage threshold, mounted | 25 W per square centimetre continuous pass |
