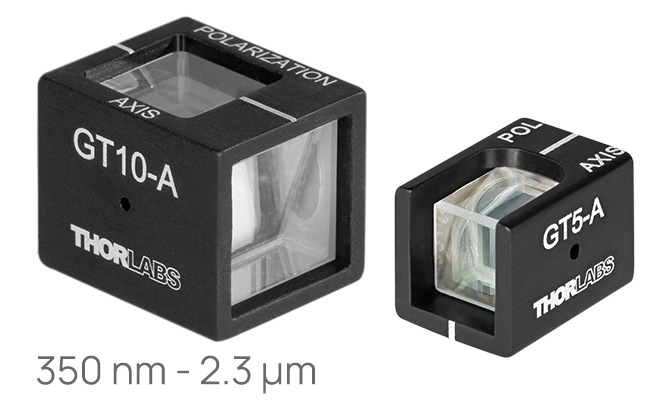

Glan-Taylor Calcite Polarizers (GT Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Air-spaced birefringent prism polarisers made from laser quality natural calcite, producing very pure linear polarisation. The ordinary ray leaves through a side port, so only the transmitted extraordinary beam should be used.
Technical Specifications
| Parameter | Value |
|---|---|
| Extinction ratio | 100 000:1 |
| Transmission range | 0.35 to 2.3 micrometres uncoated |
| Wavefront distortion | lambda/4 or better over the clear aperture |
| Surface quality | 20-10 scratch-dig on input and output faces |
| Clear apertures | 5.0 mm, 10.0 mm or 15.0 mm square |
| Uncoated damage threshold | 20 J per square centimetre at 1064 nm, 10 ns, 10 Hz |
