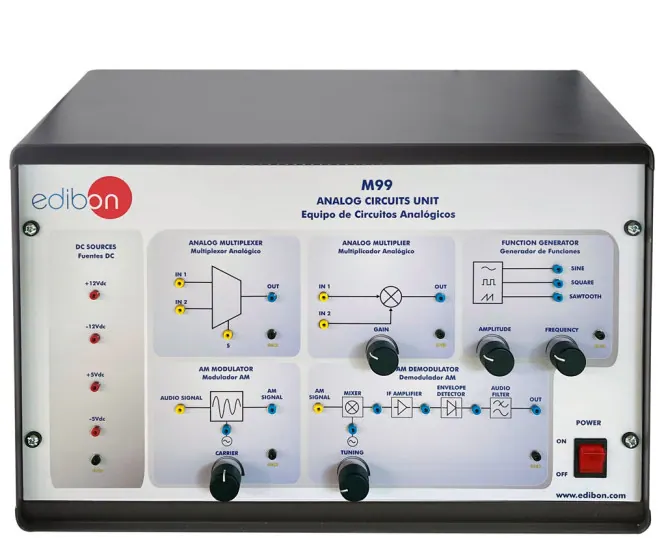

M99: Analog Circuits Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench unit for analogue electronics practicals covering an analogue multiplexer, an analogue multiplier, a function generator, and AM modulation and demodulation. A digital control signal selects between the two analogue inputs of the multiplexer stage.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 490 x 330 x 310 mm |
| Weight | 6 kg approx |
| Input Voltage | +/-10 V max |
| Frequency | 0 Hz to 100 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
