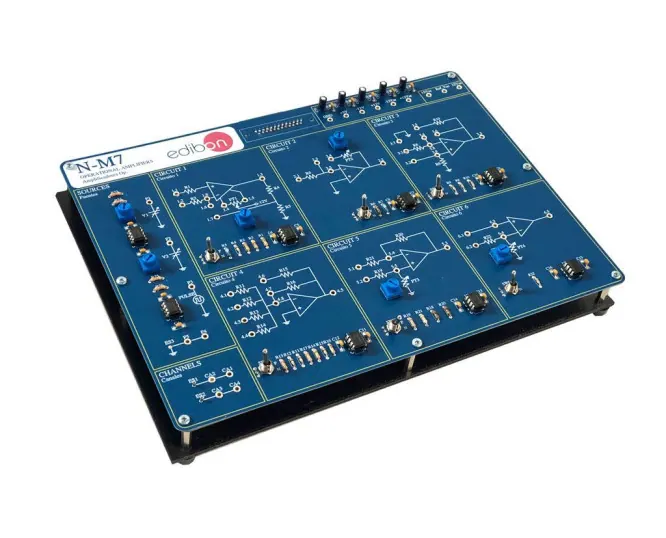

N-M7: Operational Amplifiers Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operational amplifier as a high gain differential device and the circuits built around it. Students measure gain and the transfer function of the usual configurations. Faults can be simulated in most of the circuits so the cause can be investigated.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
