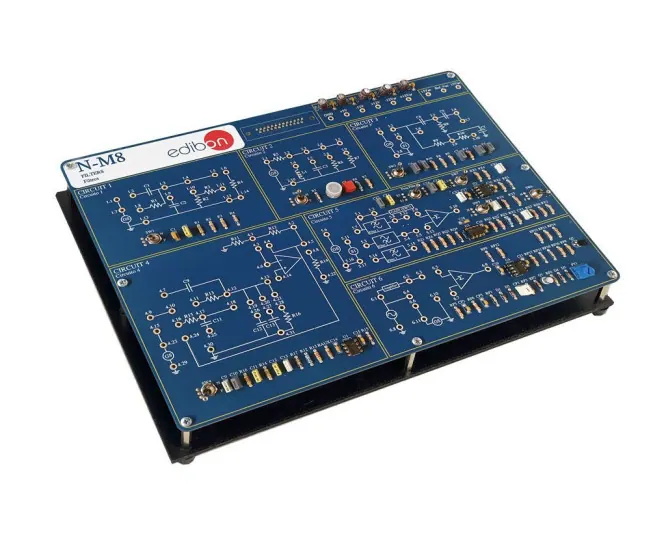

N-M8: Filters Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers electronic filters as two port networks that pass or suppress signals by frequency while altering amplitude and phase. Students measure the frequency response and build the main filter types. Faults can be simulated in most circuits for diagnostic work.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
