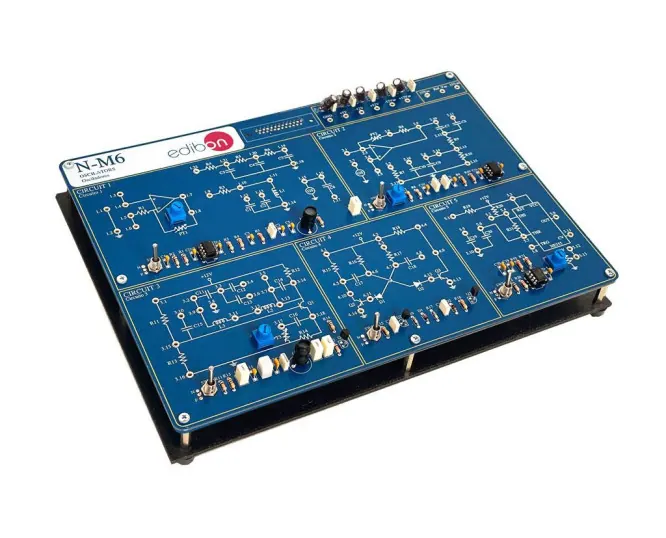

N-M6: Oscillators Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Shows how an oscillator produces a periodic output from a DC supply through an oscillating circuit, an amplifier and a positive feedback network. Students build and measure the main oscillator types, and faults can be introduced for diagnostic exercises.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
