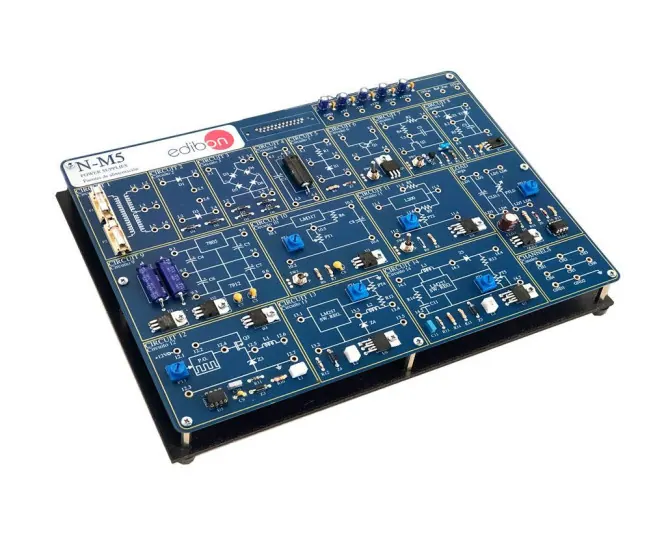

N-M5: Power Supplies Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers rectification from AC to DC and the operation of fixed, symmetrical and switched mode power supplies, including symmetrical voltage regulators. Faults can be simulated in most of the circuits under study so students trace the cause of incorrect operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 300 x 210 x 45 mm |
| Weight | 300 g approx |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
