MagIQ EUROSPIN Set TO1 - TO5
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

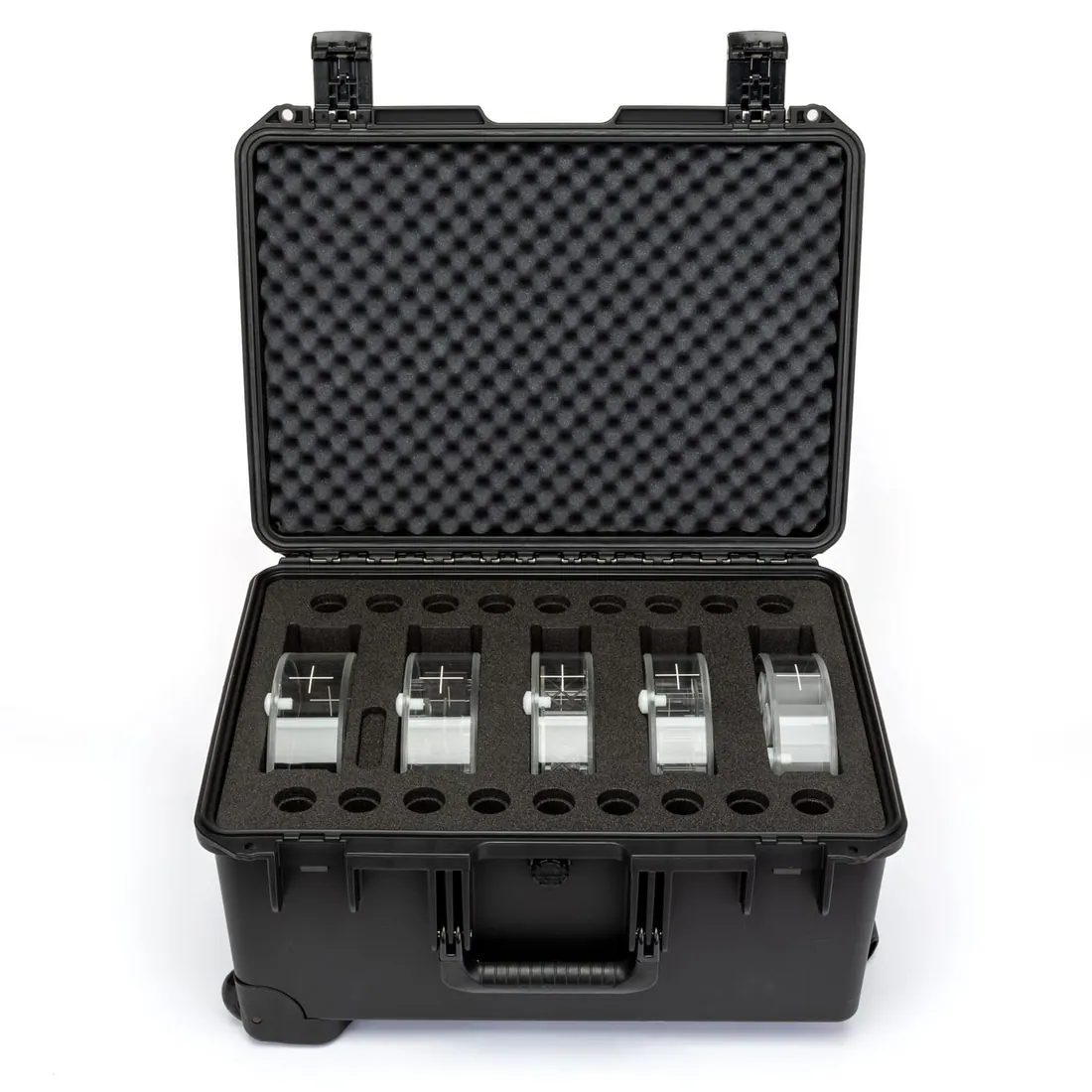

A set of five EUROSPIN pattern MRI phantoms covering the main image quality parameters, supplied with filling solutions and a protective case. TO1 to TO5 address signal to noise, distortion and slice profile, slice position, spatial resolution and MTF, and T1 and T2 precision.
Technical Specifications
| Parameter | Value |
|---|---|
| TO1 | uniformity, ghosting, signal to noise ratio |
| TO2 | geometric distortion, slice profile |
| TO3 | slice warp, slice position |
| TO4 | line pair spatial resolution, MTF |
| TO5 | T1 and T2 precision, contrast |
| Specification | Each phantom is 200 mm diameter, case has space for all 5 phantoms and 18 gel tubes |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Radiology & Radiotherapy QA Phantoms
- MagIQ Oncology
An MRI phantom for image quality assessment in cancer diagnosis, treatment planning and therapy, aimed particularly at breast and prostate imaging. A cylindrical phantom nests into a body section and carries detachable sections for T1, T2, DCE and gadolinium doped water.
- MagIQ Diffusion
An MRI phantom for calibrating contrast values in diffusion weighted imaging and apparent diffusion coefficient protocols. It allows the user to measure seven different values in a single acquisition.
- MagIQ Sphere
A spherical flood fill MRI phantom sized to fit head coils, with a support that stops it rolling on the couch. The spherical shape allows uniformity and SNR to be tested in several planes without repositioning and is less prone to Gibbs artefact than a cylinder.
