MagIQ Oncology
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

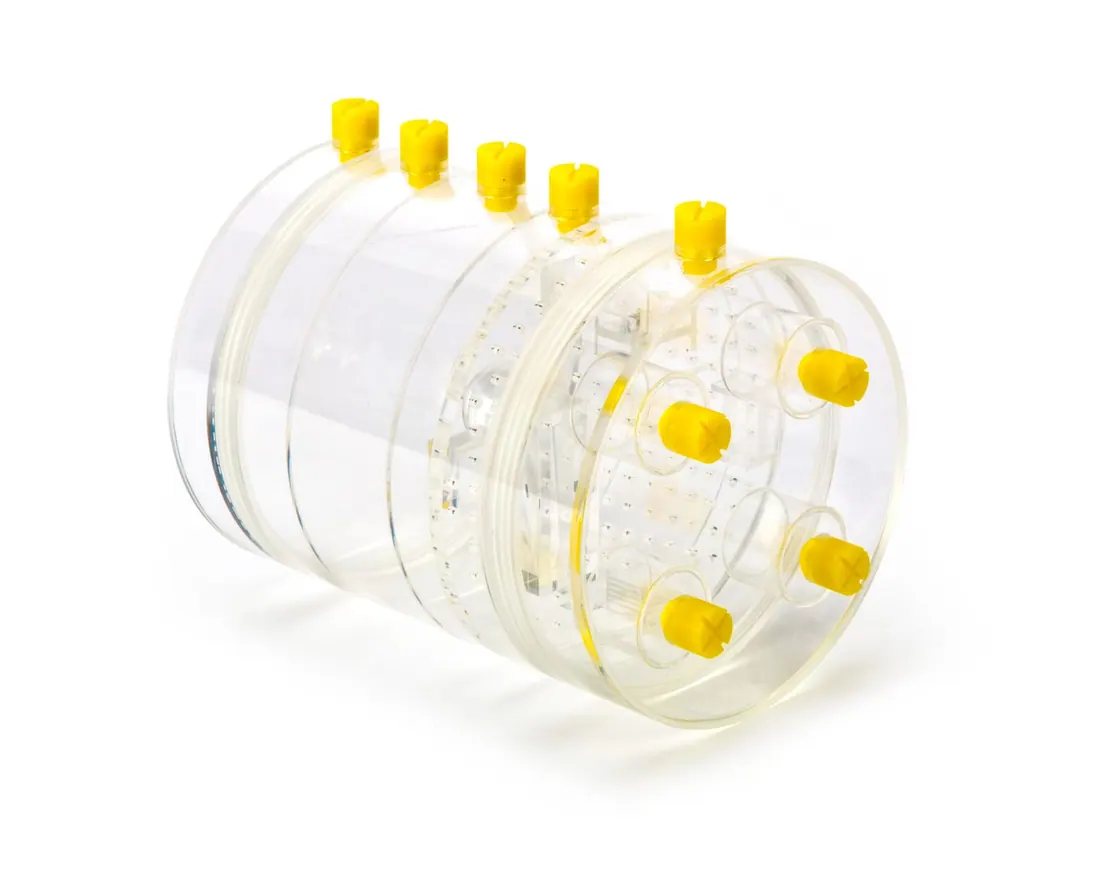

An MRI phantom for image quality assessment in cancer diagnosis, treatment planning and therapy, aimed particularly at breast and prostate imaging. A cylindrical phantom nests into a body section and carries detachable sections for T1, T2, DCE and gadolinium doped water.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Cylindrical phantom which nests into a body section |
| Specification | Measures homogeneity, contrast resolution, slice thickness, MTF and line pairs |
| Specification | Measures spherical gland volume and geometric distortion |
| Specification | Silicon suppression and fat saturation techniques |
| Specification | Detachable section for T1 and T2 values and DCE |
| Specification | Detachable section for Gd doped water |
