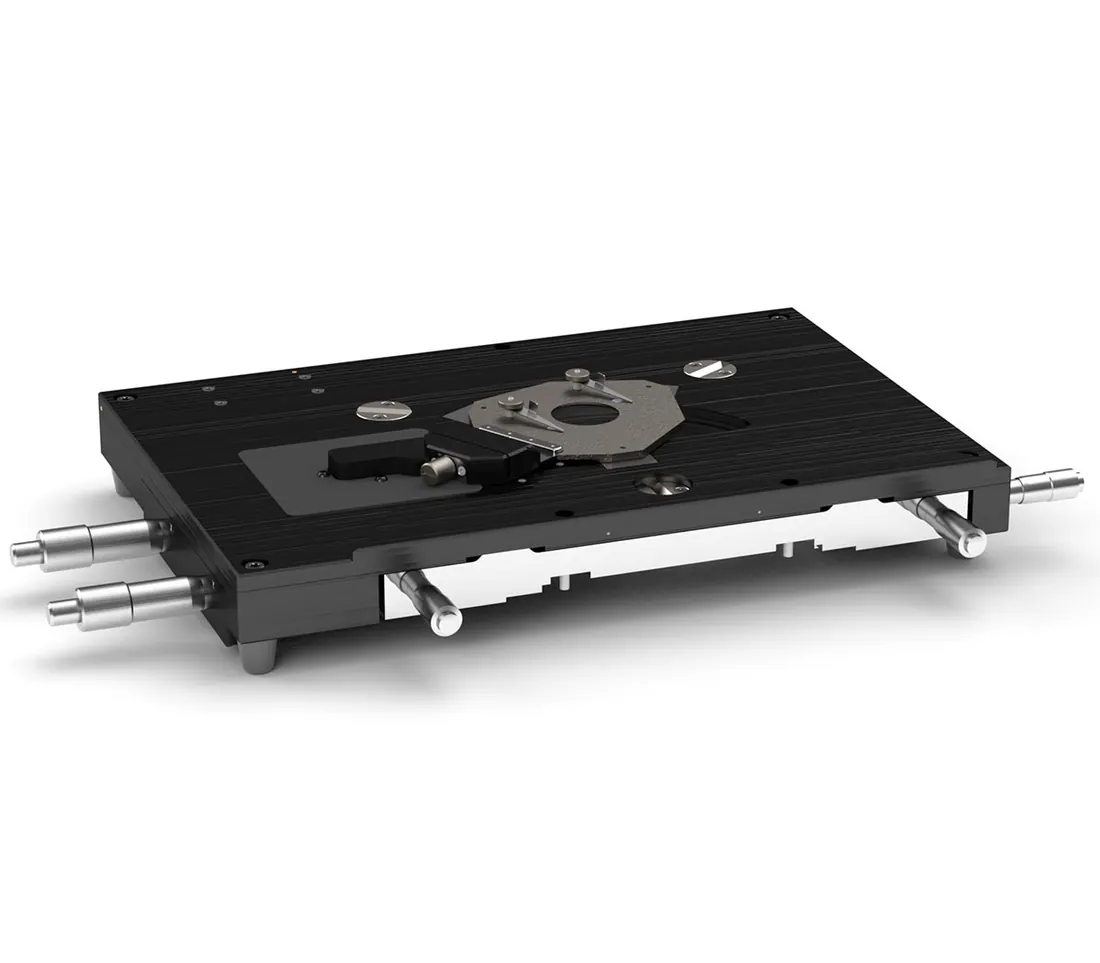

Manual XY IMO Stages
Brand: Nanosurf | Category: Nanotechnology
A manual sample stage for AFM systems coupled to an inverted optical microscope. Sample translation runs parallel to the optical path so the optical view stays centred, and objectives can still be mounted in every revolver position.
Technical Specifications
| Parameter | Value |
|---|---|
| XY movement | 10 x 10 mm |
| Microscope compatibility | Zeiss, Nikon, Leica, Olympus |
| Specification | XY axes parallel to the AFM axis coordinate system |
| Dimensions | 340 x 228 x 46 mm |
| Weight | 5.15 kg |
| Compatibility | FlexAFM and DriveAFM specific versions |
