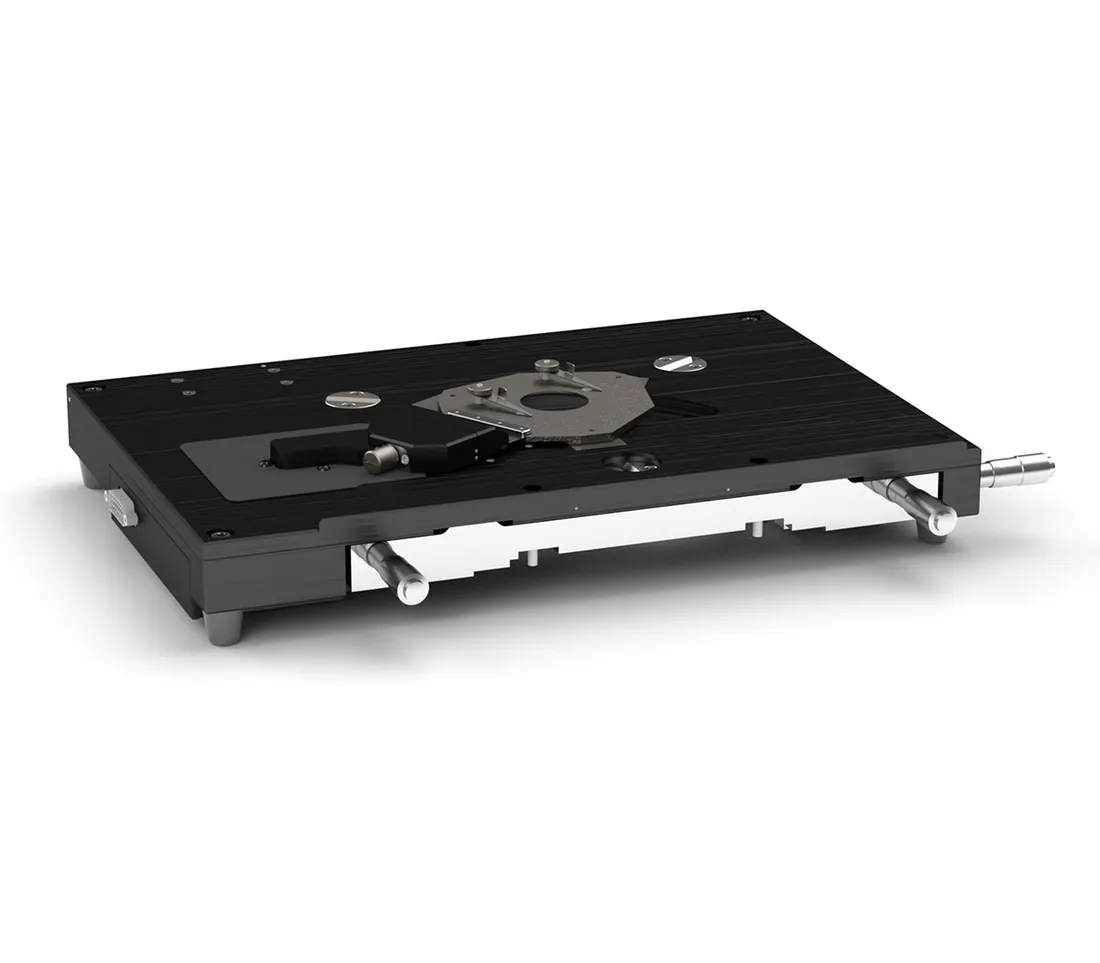

Motorized XY IMO Stages
Brand: Nanosurf | Category: Nanotechnology
A motorised sample stage for AFM systems coupled to an inverted optical microscope, driven by a stick-slip piezo motor. Translation runs parallel to the optical path so the optical view stays centred, and positions can be revisited from the software.
Technical Specifications
| Parameter | Value |
|---|---|
| XY movement | 10 x 10 mm |
| Stage resolution | better than 1 um |
| Stage repositioning | 2 um |
| Microscope compatibility | Zeiss, Nikon, Leica, Olympus |
| Dimensions | 340 x 228 x 46 mm, weight 5.15 kg |
| Compatibility | FlexAFM and DriveAFM specific versions |
