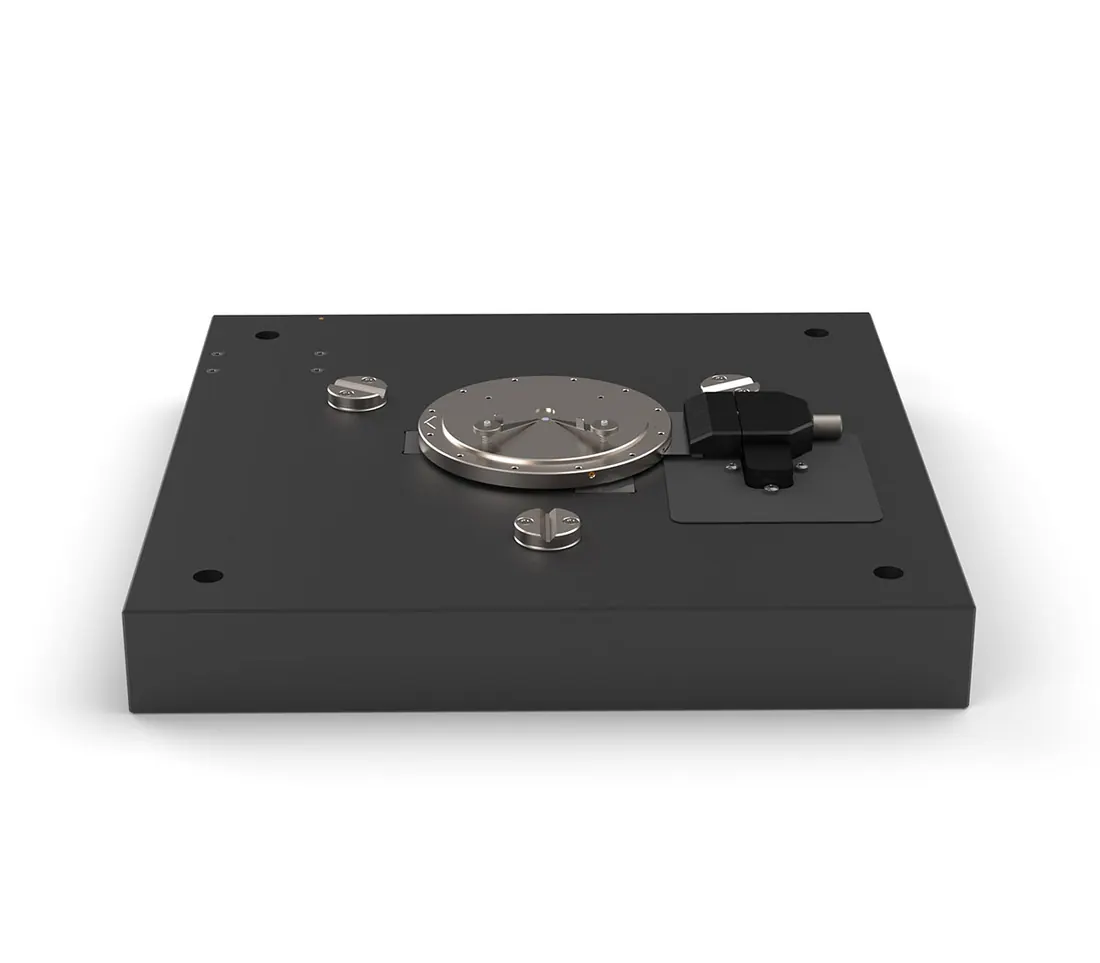

Motorized XY Stage
Brand: Nanosurf | Category: Nanotechnology
A motorised sample translation stage for stand-alone FlexAFM and DriveAFM systems, giving 20 by 20 mm of travel. Measurement positions can be set and revisited from the control software, which is the basis for automated measurement series.
Technical Specifications
| Parameter | Value |
|---|---|
| XY movement | 20 x 20 mm |
| Dimensions | 300 x 300 x 40 mm |
| Weight | 6.6 kg |
| Compatibility | FlexAFM and DriveAFM specific versions |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
