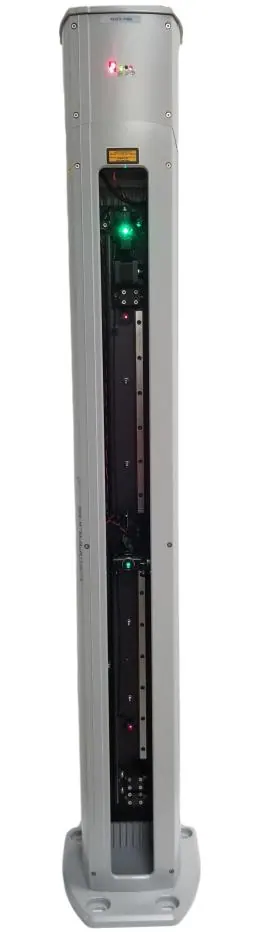

MAXX-1100 CT Room Laser Patient Positioning System
Brand: Cemar Electro | Category: Medical Equipment
The CT room laser in the Cemar range, supplied either as single free standing units or as a complete set enclosed within a gantry system. The control interface is DICOM based and works with all major CT scanners, and the modular laser diodes can be changed by the user without removing the unit.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Accuracy plus or minus 0.2 mm |
| Specification | Range of travel plus or minus 300 mm |
| Wavelength | red 635 nm, green 520 nm |
| Specification | DICOM 3.0 RT control interface, compatible with all major CT scanners |
| Specification | Wireless communication over Ethernet and Zigbee, symbol based remote control |
| Specification | Available as single free standing units or as a complete set enclosed within a gantry system |
