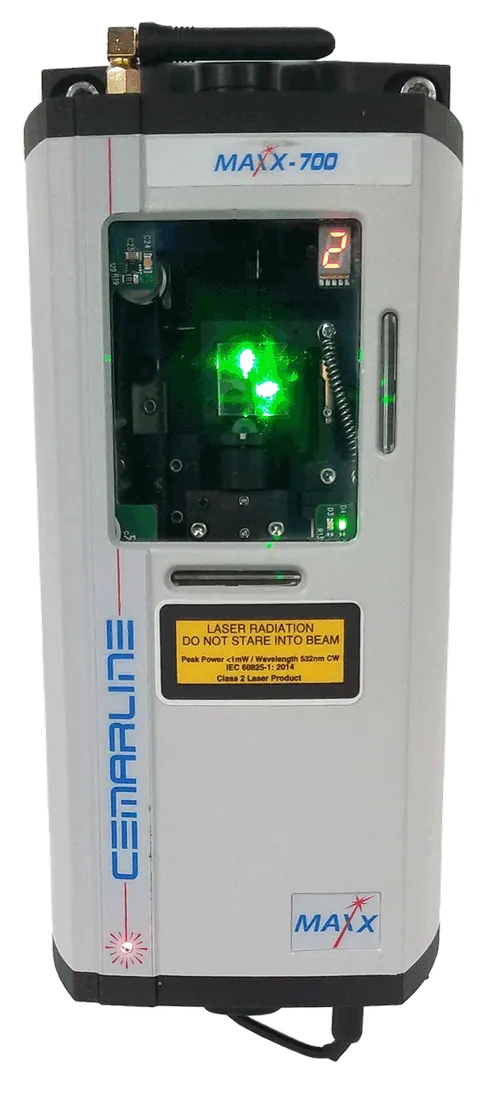

MAXX-700 Series Patient Positioning System
Brand: Cemar Electro | Category: Medical Equipment
A motorised patient positioning laser system with precision motor drives on four axes and Bluetooth remote control that does not conflict with hospital wireless. Every MAXX-700 carries an automatic alignment verification system, so daily verification is a single step.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Alignment verification sensor and automatic ambient light adjustment |
| Specification | X axis horizontal movement 20 mm (0.8 in), plus or minus 10 mm from ISO centre; Y axis vertical movement 20 mm, plus or minus 10 mm |
| Specification | Roll axis horizontal rotation 10 deg, pitch axis vertical rotation 6 deg, crosshair beam rotation 15 deg |
| Specification | Focus adjustment 0.5 m to 6 m (2 ft to 20 ft), crosshair beam fan-out 60 deg in both axes |
| Specification | Laser power adjustment 1 mW, maximum line width at 3 m (10 ft) 1.0 mm (0.04 in), remote controls up to 5 lasers per room |
| Specification | Dimensions 210 x 116 x 94 mm, weight 2.9 kg (6.4 lbs), power 100-240 VAC, 0.25 A, 50-60 Hz |
