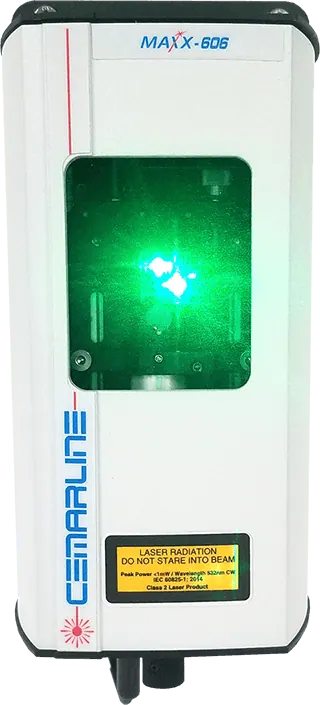

MAXX-600 Series Manual Laser Patient Positioning System
Brand: Cemar Electro | Category: Medical Equipment
The manual patient positioning laser system in the Cemar range, comprising the MAXX-606 crosshair laser and the MAXX-607 sagittal laser. It is set by hand on four axes and is intended for radiotherapy and simulator rooms where a motorised system is not required.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Series includes MAXX-606 crosshair laser and MAXX-607 sagittal laser |
| Specification | X axis horizontal movement 20 mm (0.8 in), plus or minus 10 mm from ISO centre; Y axis vertical movement 20 mm, plus or minus 10 mm |
| Specification | Roll axis horizontal rotation 10 deg, pitch axis vertical rotation 6 deg, crosshair beam rotation 15 deg |
| Specification | Focus adjustment 0.5 m to 6 m (2 ft to 20 ft), crosshair beam fan-out 60 deg in both axes |
| Specification | Laser power adjustment 1 mW, maximum line width at 3 m (10 ft) 1.2 mm (0.047 in) |
| Specification | Dimensions 210 x 118 x 100 mm, weight 1.8 kg (3.9 lbs), power 110-240 VAC, 0.8 A, 50-60 Hz |
