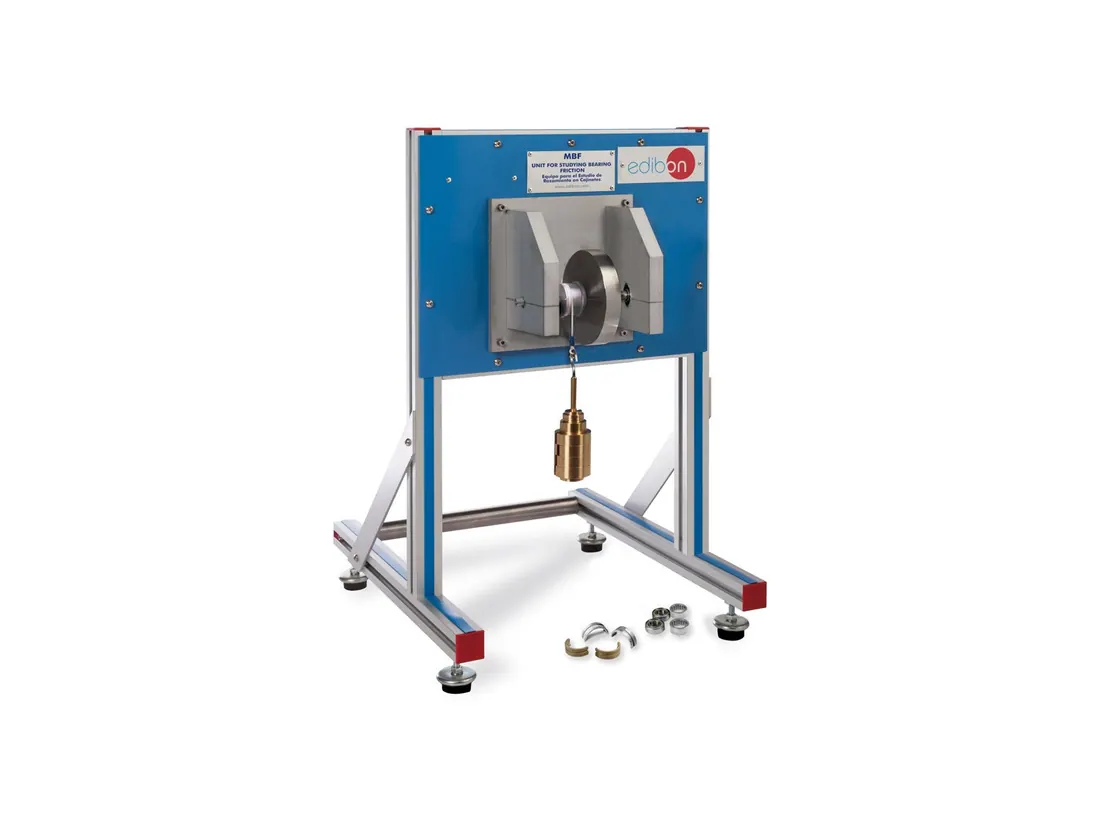

MBF: Unit for Studying Bearing Friction
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MBF is used to compare friction in plain and rolling element bearings. Bearings are loaded and driven while the friction torque is measured, so students can examine how load, speed and lubrication affect the losses.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 600 x 650 mm approx |
| Weight | 25 Kg approx |
| Shaft bearing journal | 17 mm |
| Inertia flywheel diameter | 300 mm |
| Inertia flywheel thickness | 40 mm |
| Inertia flywheel mass | 22.5 Kg |
