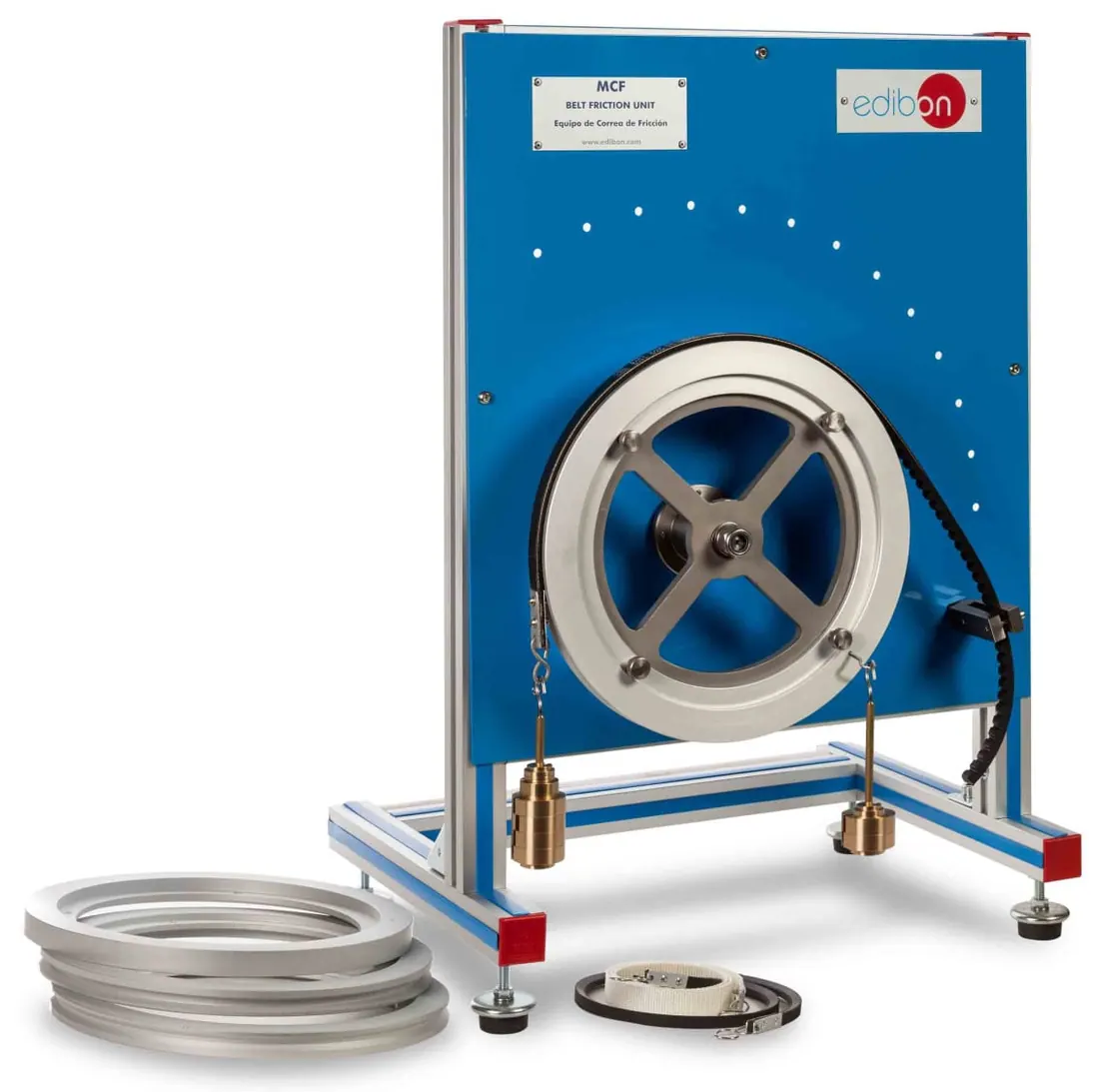

MCF: Belt Friction Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
MCF is used to study friction between a belt and a pulley. Belts of different material are wrapped over a drum at varying angles of lap and the tensions on each side are measured, allowing the capstan equation to be verified.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 550 x 500 x 600 mm approx |
| Weight | 15 Kg approx |
| Specification | V-shaped toothed belt, 10 mm width |
| Specification | V-shaped flat belt, 10 mm width |
| Specification | V-shaped flat belt, 13 mm width |
