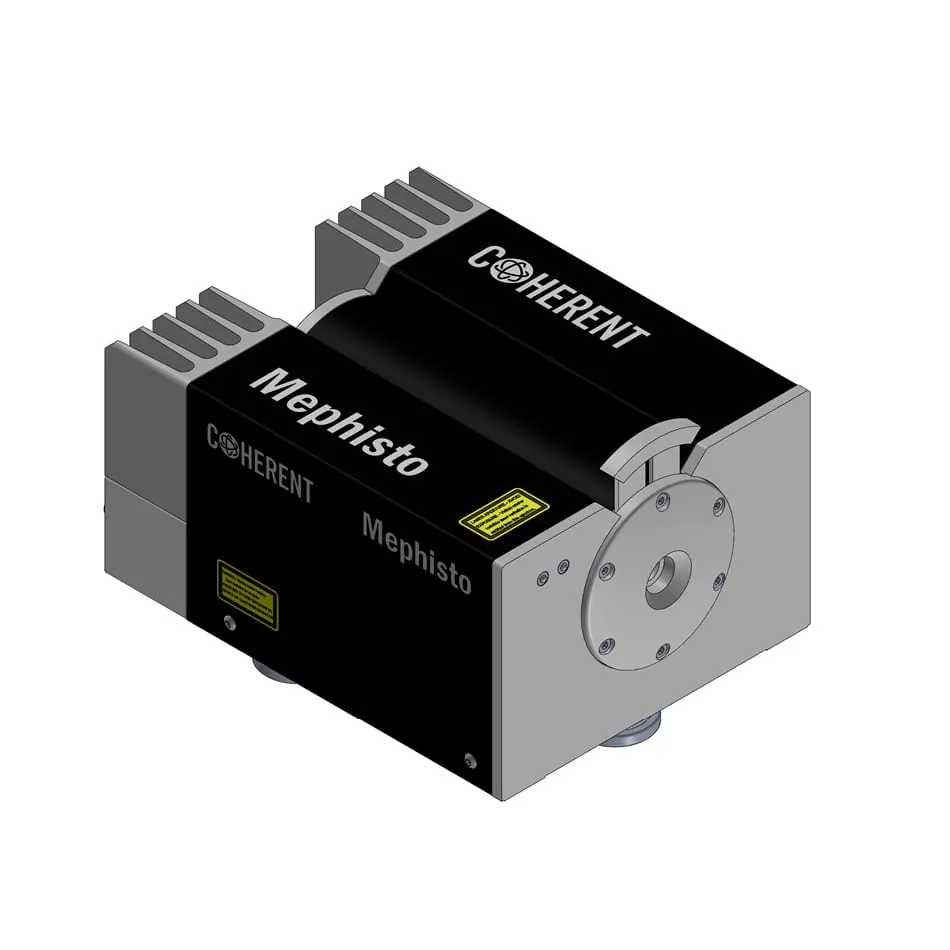

Mephisto
Brand: Coherent | Category: Scientific & Laboratory Equipment
Mephisto are non-planar ring oscillator continuous wave lasers with very low noise and narrow linewidth. They provide temperature frequency tuning and fine piezo tuning, and are used in gravitational wave observatories, laboratory research and OEM instruments.
Technical Specifications
| Parameter | Value |
|---|---|
| Mephisto | 1064 nm, 0.5, 1 or 2 W, linewidth <=3 kHz, tuning range 30 GHz, RIN <-140 dB/Hz |
| Mephisto S | 1064 nm, 0.2 W, linewidth in the kHz range, tuning range 30 GHz, RIN <-120 dB/Hz |
| Mephisto MOPA | 1064 nm, 25, 42 or 55 W, linewidth <=3 kHz, RIN <-130 dB/Hz |
| Prometheus | 532 nm, 0.02 or 0.1 W, linewidth <=3 kHz, tuning range 60 GHz, RIN <-135 dB/Hz |
