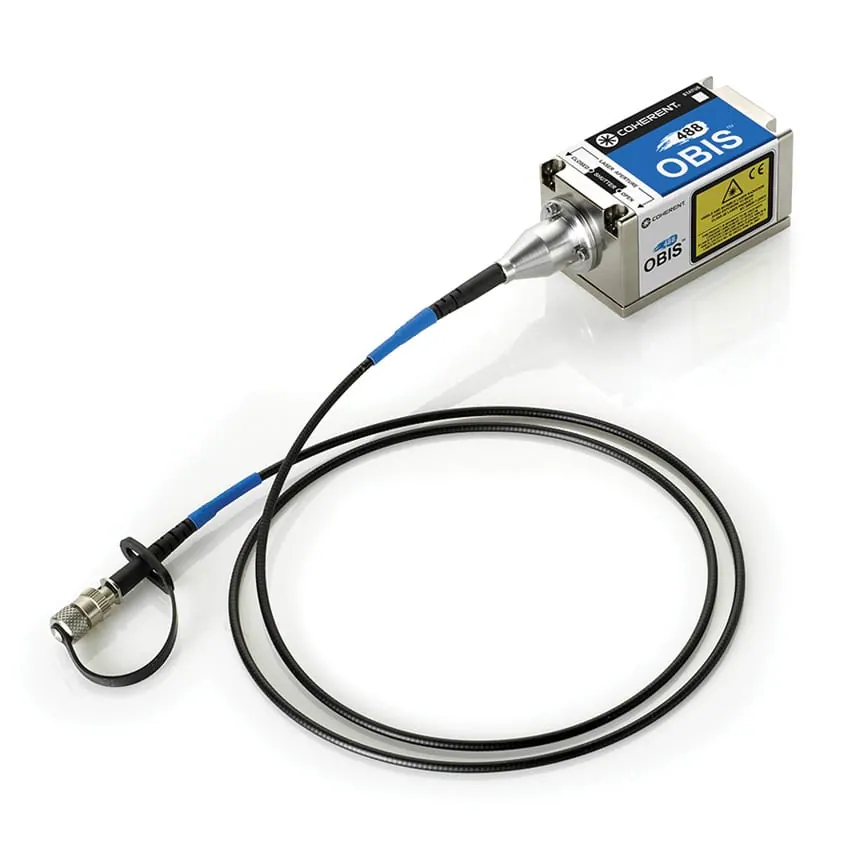

OBIS LS/LX
Brand: Coherent | Category: Scientific & Laboratory Equipment
OBIS LS and LX are compact continuous wave lasers with integrated control electronics, covering more than 30 wavelengths from the ultraviolet to the near infrared. Fibre pigtailed versions are available, and the range supports analogue, digital and mixed modulation.
Technical Specifications
| Parameter | Value |
|---|---|
| OBIS LS | 488, 505, 514, 532, 552, 561 and 594 nm, up to 200 mW, M2 <=1.1 |
| OBIS LX | 375 to 980 nm across 23 wavelengths, up to 365 mW, M2 <=1.2 |
| OBIS LS modulation | 50 kHz digital, 100 kHz analog |
| OBIS LX modulation | 150 MHz digital, 500 kHz analog |
| OBIS LX SF single frequency | 405, 633, 660 and 785 nm, up to 50 mW |
| OBIS LX SF linewidth | <0.3 pm at 405 and 633 nm, <1.5 pm at 660 nm, <0.7 pm at 785 nm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
