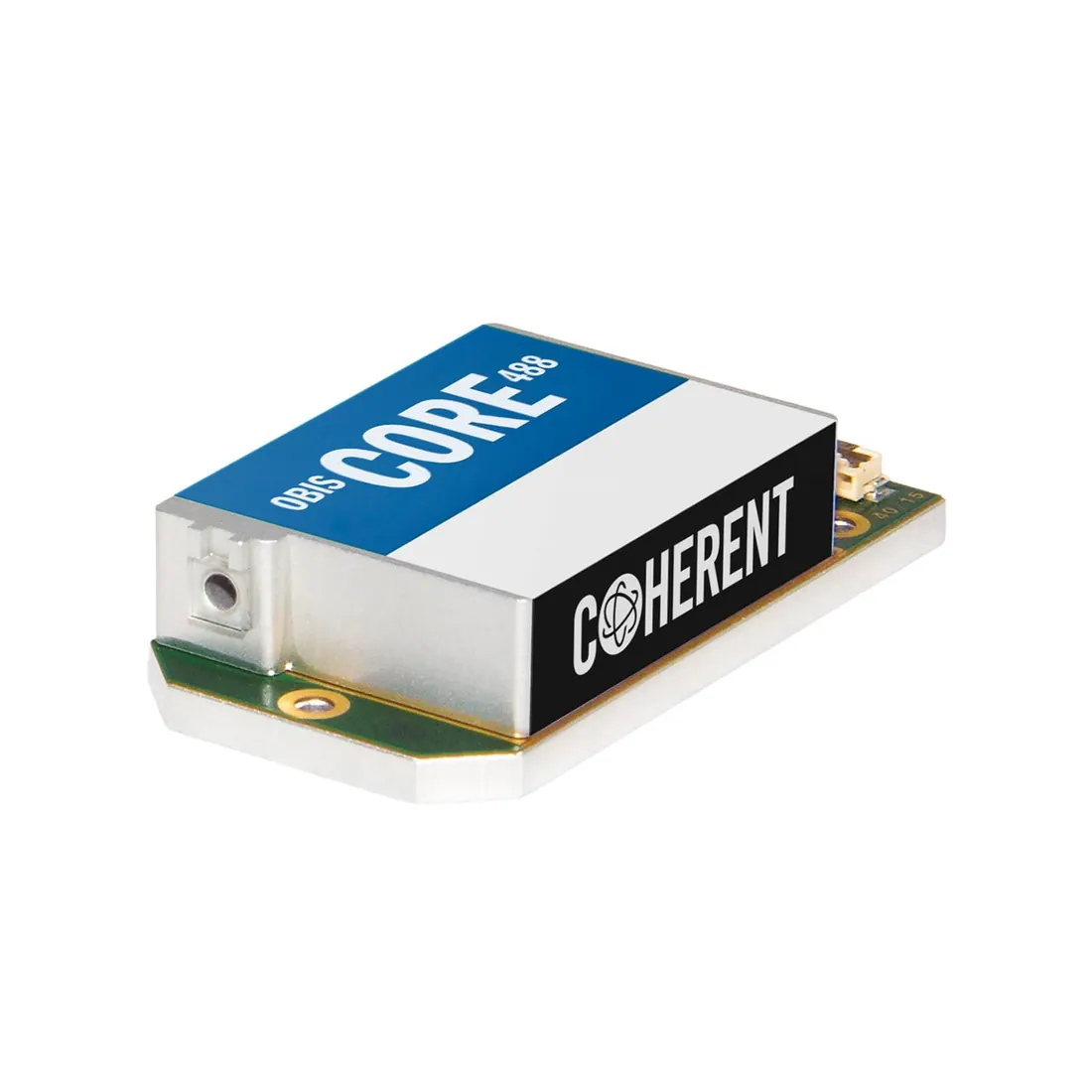

OBIS CORE LS
Brand: Coherent | Category: Scientific & Laboratory Equipment
OBIS CORE LS are very small low noise continuous wave lasers with a high quality beam and analogue and digital modulation to 1 kHz. Seven wavelengths from 488 nm to 594 nm are offered for benchtop flow cytometers and point of care analysers.
Technical Specifications
| Parameter | Value |
|---|---|
| OBIS CORE 488LS, 532LS and 561LS | 20 to 200 mW |
| OBIS CORE 505LS | 30 to 150 mW |
| OBIS CORE 514LS and 552LS | 20 to 150 mW |
| OBIS CORE 594LS | 20 to 100 mW |
| RMS noise up to 20 MHz | <=0.25 % |
| Pointing stability | <5 urad per degree C |
