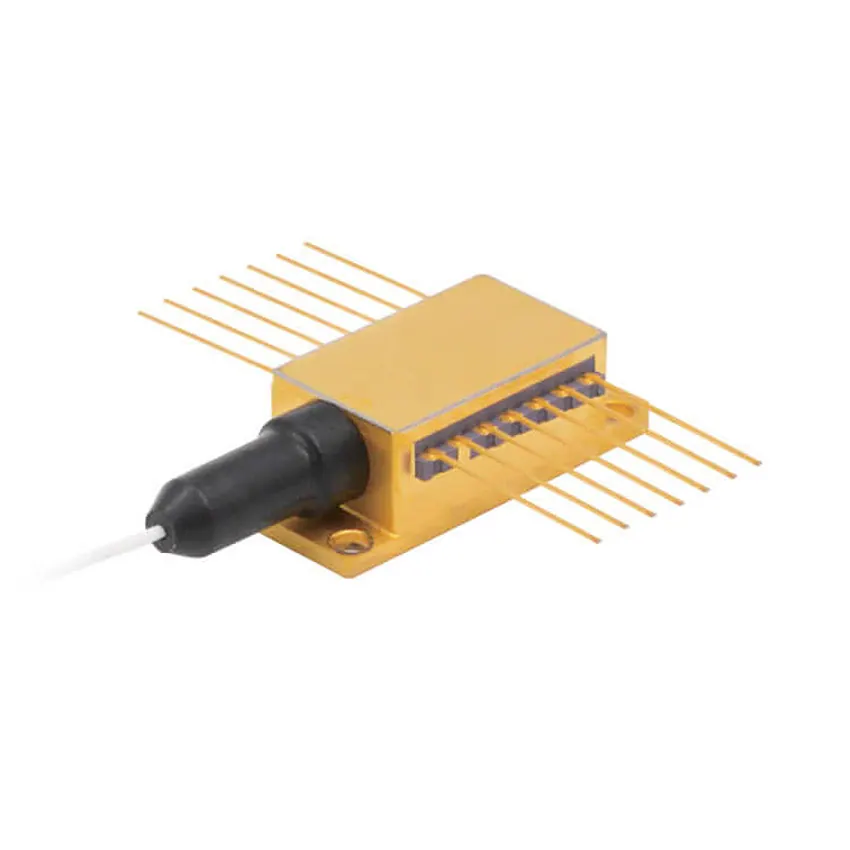

Narrow Spectral Linewidth Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
This is a compact wavelength locked 785 nm laser offered as a free beam, fibre coupled or module configuration. The locking method holds bandwidth below 0.1 nm with a typical side mode suppression ratio of 40 dB, giving an alternative to an external cavity laser for Raman spectroscopy and sensing.
Technical Specifications
| Parameter | Value |
|---|---|
| Module RLAS-0785-0500-N-MM-10-01-02-A | 785 +/-0.5 nm |
| Linewidth | <=0.1 nm |
| Output power | 500 mW |
| Power stability | <3 % |
| Side mode suppression ratio | 40 dB |
| Operating temperature range | -20 to +50 degrees C |
