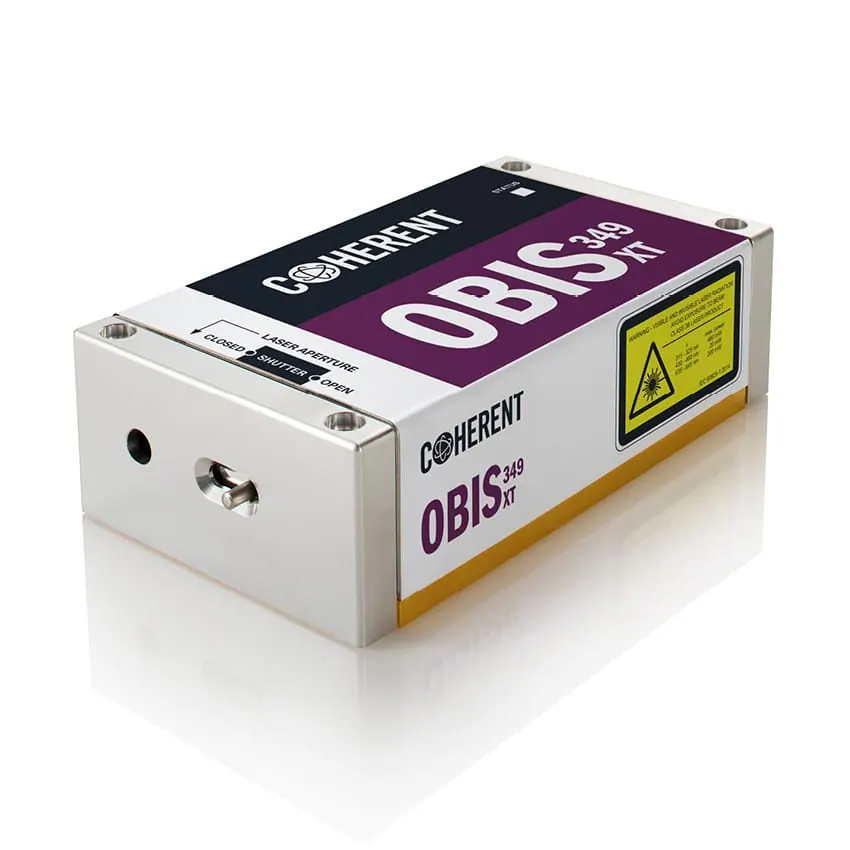

OBIS LG and XT
Brand: Coherent | Category: Scientific & Laboratory Equipment
OBIS LG and XT extend the self-contained OBIS platform into the ultraviolet and to a high power 640 nm line. Control electronics sit inside the laser head, and the lasers are used for flow cytometry, super-resolution microscopy, confocal microscopy and semiconductor inspection.
Technical Specifications
| Parameter | Value |
|---|---|
| OBIS 320 XT | 320.2 nm, 20 or 40 mW, M2 <=1.1 |
| OBIS 349 XT | 348.8 nm, 20, 60, 100 or 150 mW, M2 <=1.1 |
| OBIS LG 355 | 355 +/-2 nm, 20 or 50 mW, M2 <=1.2 |
| OBIS 360 XT | 360.4 nm, 20, 60, 100 or 150 mW, M2 <=1.1 |
| OBIS 640 XT | 639.5 nm, 300, 400, 500 or 1000 mW, M2 <=1.1 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
