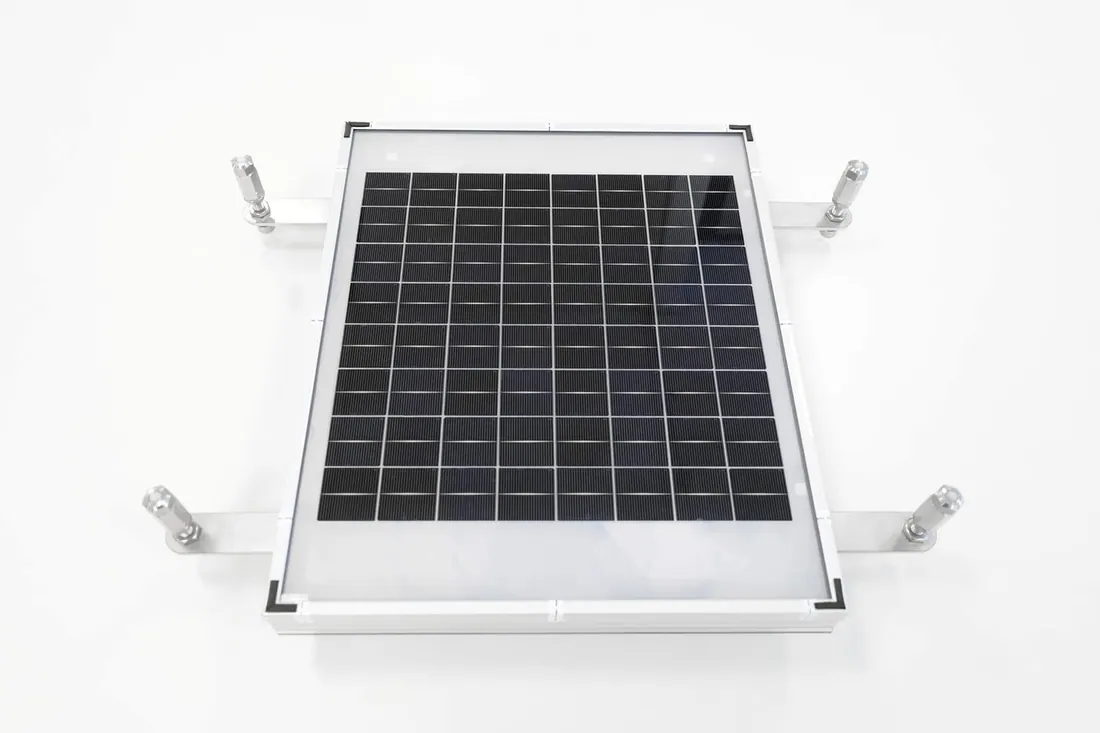

Micro uniformity Measurement tool
Brand: EternalSun | Category: Scientific & Laboratory Equipment
A calibration tool that measures the micro uniformity of pulsed solar simulators as recommended by IEC 60904-9 edition 3. An array of small cells maps the light field across the full test area, which matters when testing half cut cell and shingled modules.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 64 micro cells |
| Specification | Measures the full surface of Eternalsun Spire solar simulators in 24 flashes |
| Specification | Micro uniformity measurement as recommended by IEC 60904-9 Edition 3 (2020) |
| Specification | Suits table top solar simulators, and tunnel type flashers with mechanical adapters |
