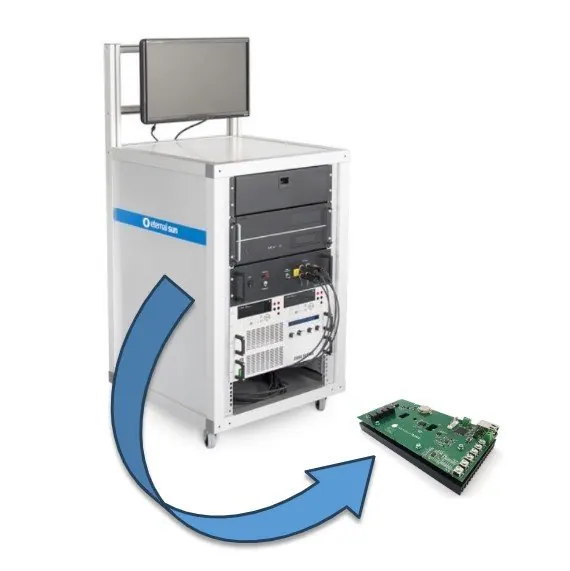

Mini IV measurement system for testing PV mini-modules
Brand: EternalSun | Category: Scientific & Laboratory Equipment
An IV measurement and maximum power point tracking system for PV mini modules. It records current voltage curves and tracks the maximum power point by the perturb and observe method, with adjustable step size, delay time and power and noise thresholds for perovskite work.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Optimised for mini modules of 3 W to 90 W |
| Specification | Full range IV measurement up to 15 A and 200 V |
| Specification | Multiple units can be run in parallel, for example 16 |
| Specification | MPP tracking by the perturb and observe method |
| Specification | Adjustable step size, delay time, power thresholds and noise thresholds |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EternalSun equipment requirements in Bangladesh.
