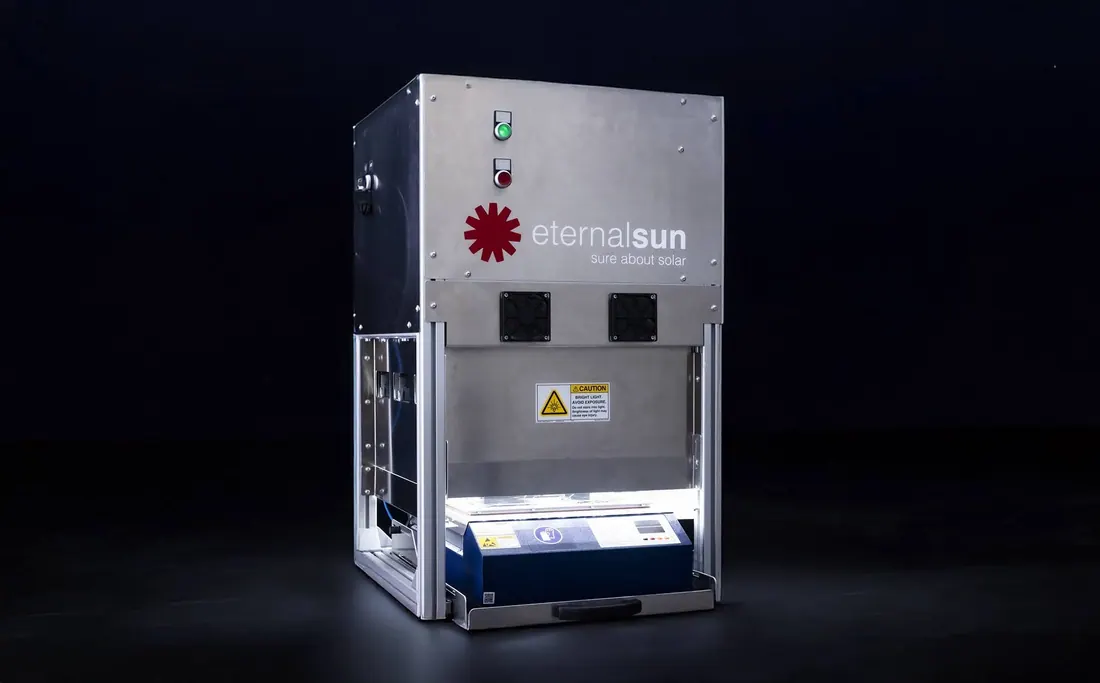

Mini LED Light Soaker
Brand: EternalSun | Category: Scientific & Laboratory Equipment
A small steady state LED solar simulator for solar cells and PV mini modules, aimed at perovskite, tandem and thin film research. Modular LED panels set the test area, and a built in IV measurement system records power, degradation and stability during scale up.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Steady state Class A+A+A+, up to 36,000 h without interruption |
| Specification | For modules up to 50 x 50 cm |
| Specification | Available in wide or extra wide active spectrum range |
| Specification | Sample temperature control from 15 C to 85 C |
| Specification | Full range IV measurement from 60 mA to 20 A with MPP tracking |
| Specification | Modular LEDs give a variable test area for mini modules or several samples |
