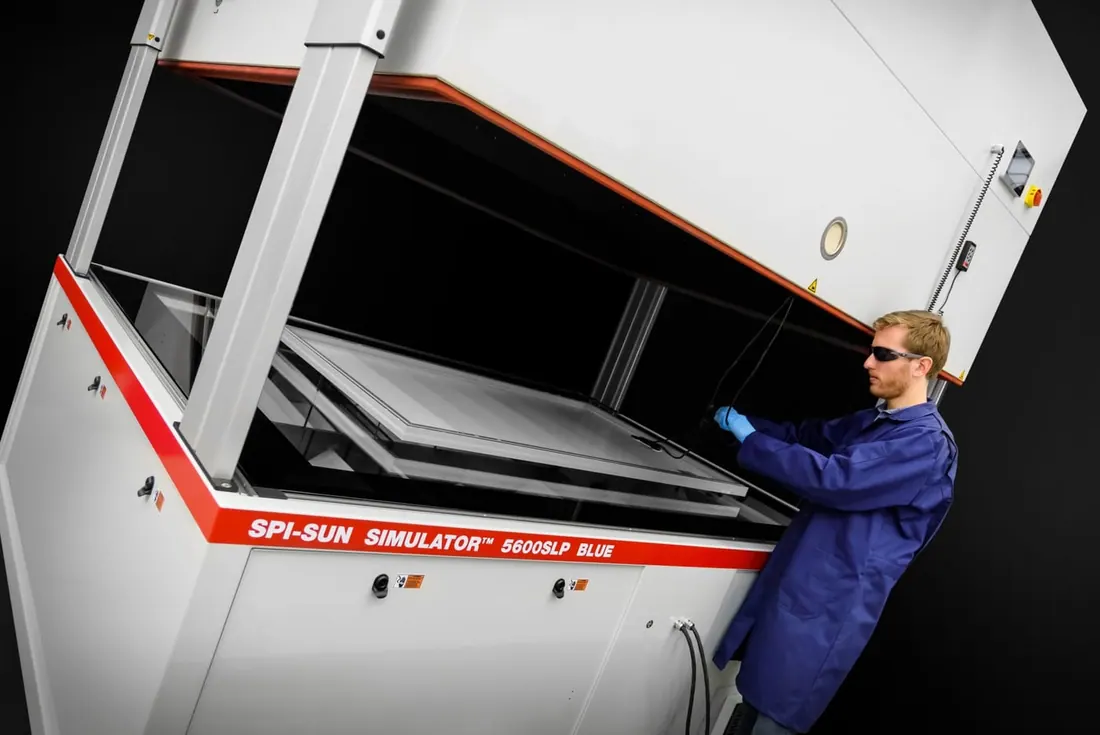

SPIRE Temperature Controlled PV Laboratory solar Flasher
Brand: EternalSun | Category: Scientific & Laboratory Equipment
A xenon flash laboratory solar simulator combined with a temperature controlled chamber. It is used to determine module power, temperature coefficients to IEC 61215 and energy rating to IEC 61853, including bifacial and high efficiency module types.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Xenon single long pulse up to 230 ms |
| Specification | Class A+ spectrum from 300 nm to 1200 nm to IEC 60904-9 ed. 3 |
| Specification | Spectral coverage above 99% |
| Specification | Measurement repeatability of 0.15% or better |
| Specification | Chamber temperature range 10 C to 85 C with temperature uniformity of plus or minus 1 C |
| Specification | IEC 61853-1 irradiance and temperature matrix in about 3 hours |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EternalSun equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
