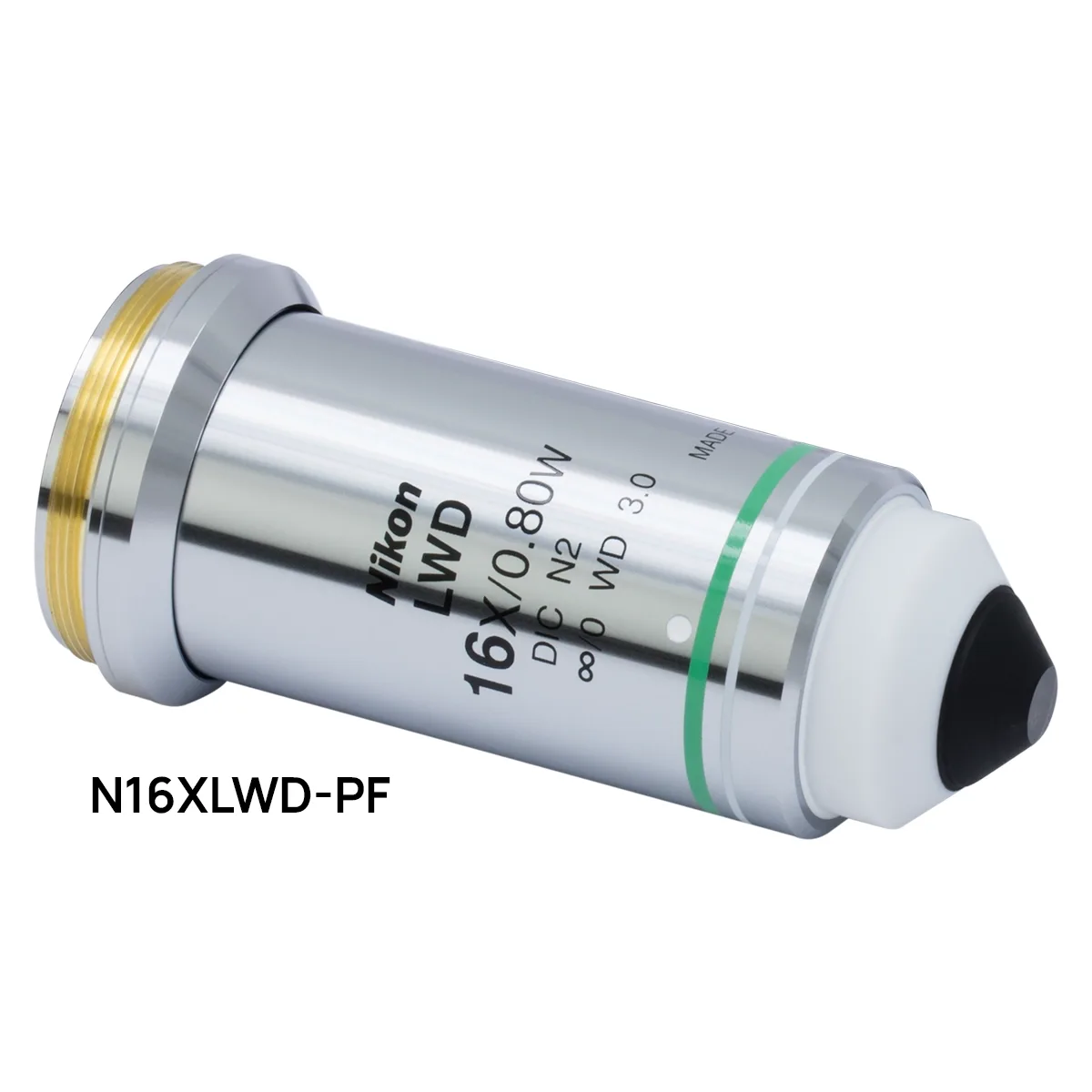

Microscope Objectives, Water Dipping or Immersion
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Infinity corrected apochromatic and plan fluorite objectives designed for physiology and multiphoton imaging, used either dipped directly into the bath or with a coverslip and water immersion. High numerical apertures are combined with long working distances.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnifications | 10X, 16X, 20X, 25X, 28X, 40X and 60X |
| Specification | Numerical apertures from 0.30 to 1.15 |
| Specification | Working distances from 0.59 mm to 5.5 mm |
| Specification | Wavelength ranges from 360 to 1500 nm depending on model |
| Design tube lens focal lengths | 180 mm or 200 mm |
| Specification | Apochromat and plan fluorite classes, water dipping or water immersion |
