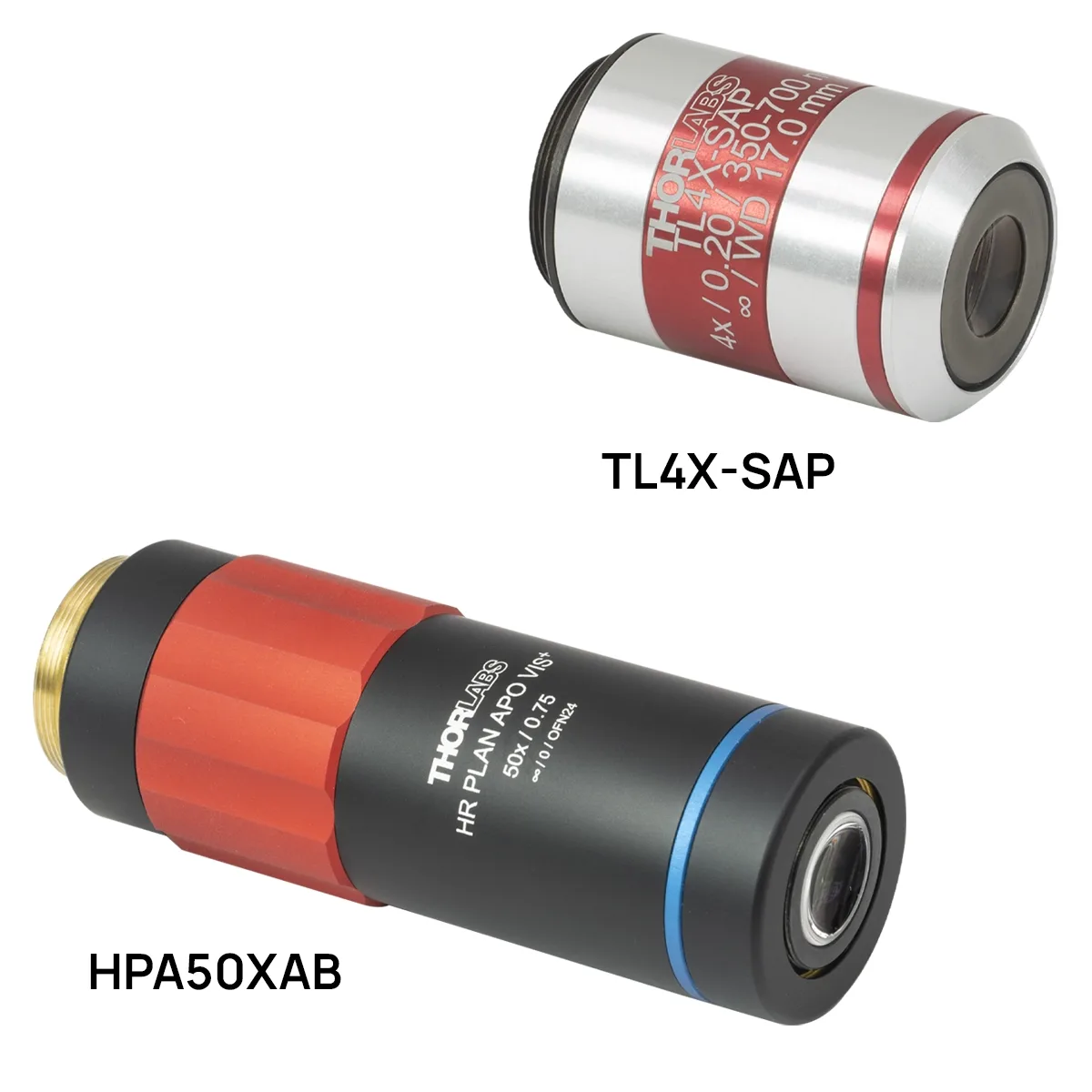

Imaging Microscope Objectives, Air
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Infinity corrected dry objectives from 1X to 100X in plan extended apochromatic, plan apochromatic, plan fluorite, plan achromatic and achromatic designs. They cover the ultraviolet, visible and near infrared for microscopy and beam focusing.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Magnifications from 1X to 100X |
| Specification | Numerical apertures from 0.03 (TL1X-SAP) to 0.75 (HPA50XAB) |
| Specification | Working distances from 2.6 mm to 56.3 mm across the range |
| Design tube lens focal length | 200 mm |
| Threading | M25 x 0.75, M32 x 0.75 or W26 x 0.706 depending on model |
| Specification | Wavelength ranges from 350 to 1300 nm depending on model |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
