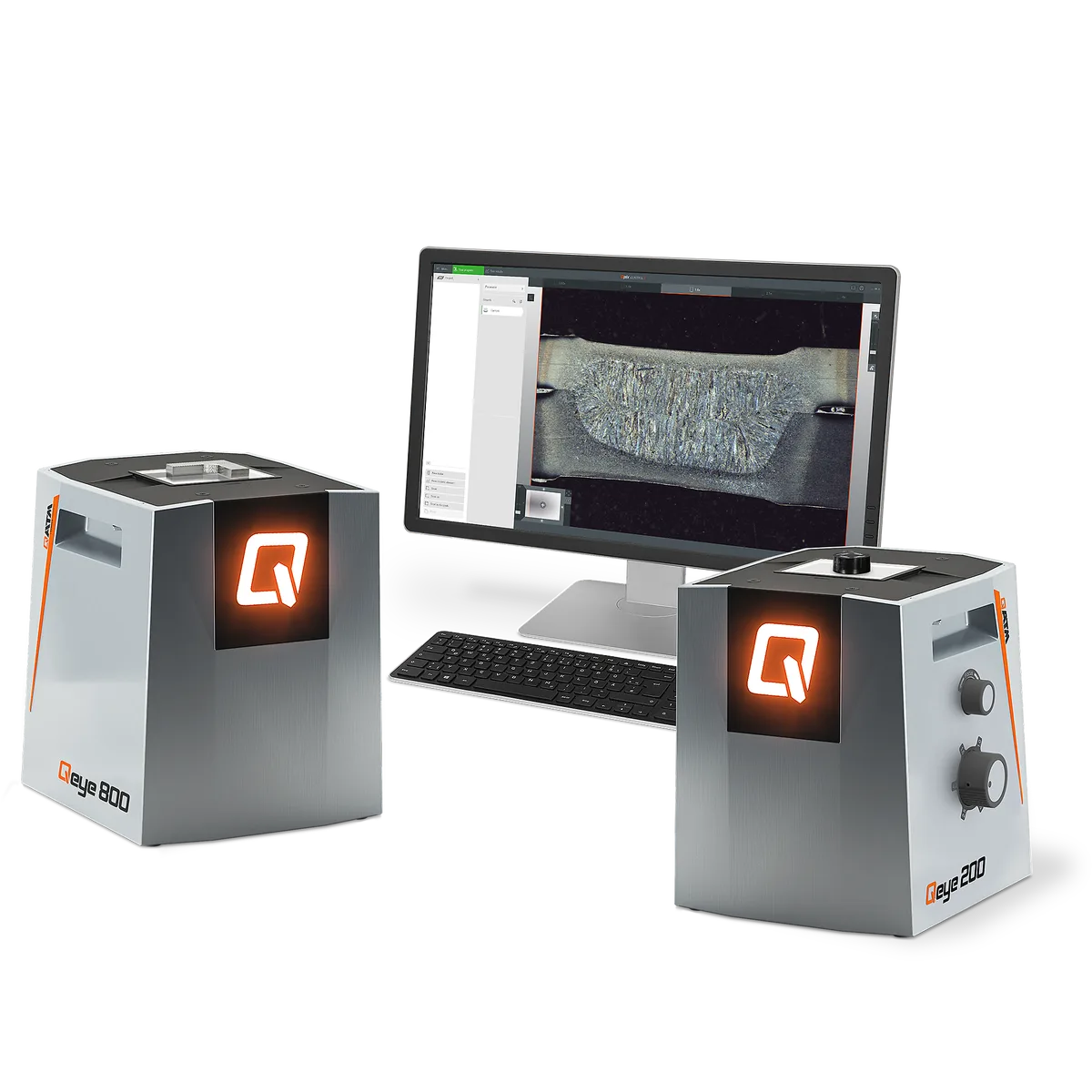

Qeye 200 / Qeye 800: Optical Analyser and Inverse Macroscope
Brand: QATM | Category: Scientific & Laboratory Equipment
Inverse macroscopes for visual quality control of weld seams, solder joints and components, working directly on the macro section. The Qeye 200 has the finer field of view for laser welds and electronic assemblies; the Qeye 800 covers the larger fields used for macro welds in steel fabrication. Both assess weld shape, penetration depth and defects to DIN EN ISO 5817.
Published shared installation data
| Parameter | Value |
|---|---|
| Dimensions glass sample carrier (L x W x H) | 95 x 75 x 2 mm (3.7 x 3.0 x 0.08“) |
| Max. sample weight | 5 kg (11 lbs) |
| Power connection | 100 - 240 V ~1/N/PE, 50 - 60 Hz |
| Power Consumption | Idle: ~35 W | Operation: ~60W | Max. ~100 W |
| Dimensions | 220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) *inkl. Qeye cover |
| Weight | 16 kg (35.3 lbs) |
| Ambient temperature | 18 - 28 °C (64 - 82 °F) |
These installation values appear in both manufacturer technical tables for the Qeye family. Optical fields of view, zoom steps and cameras differ between configurations and are deliberately not combined here. The 365 mm height includes the Qeye cover. Confirm the selected model and its optical specifications in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
