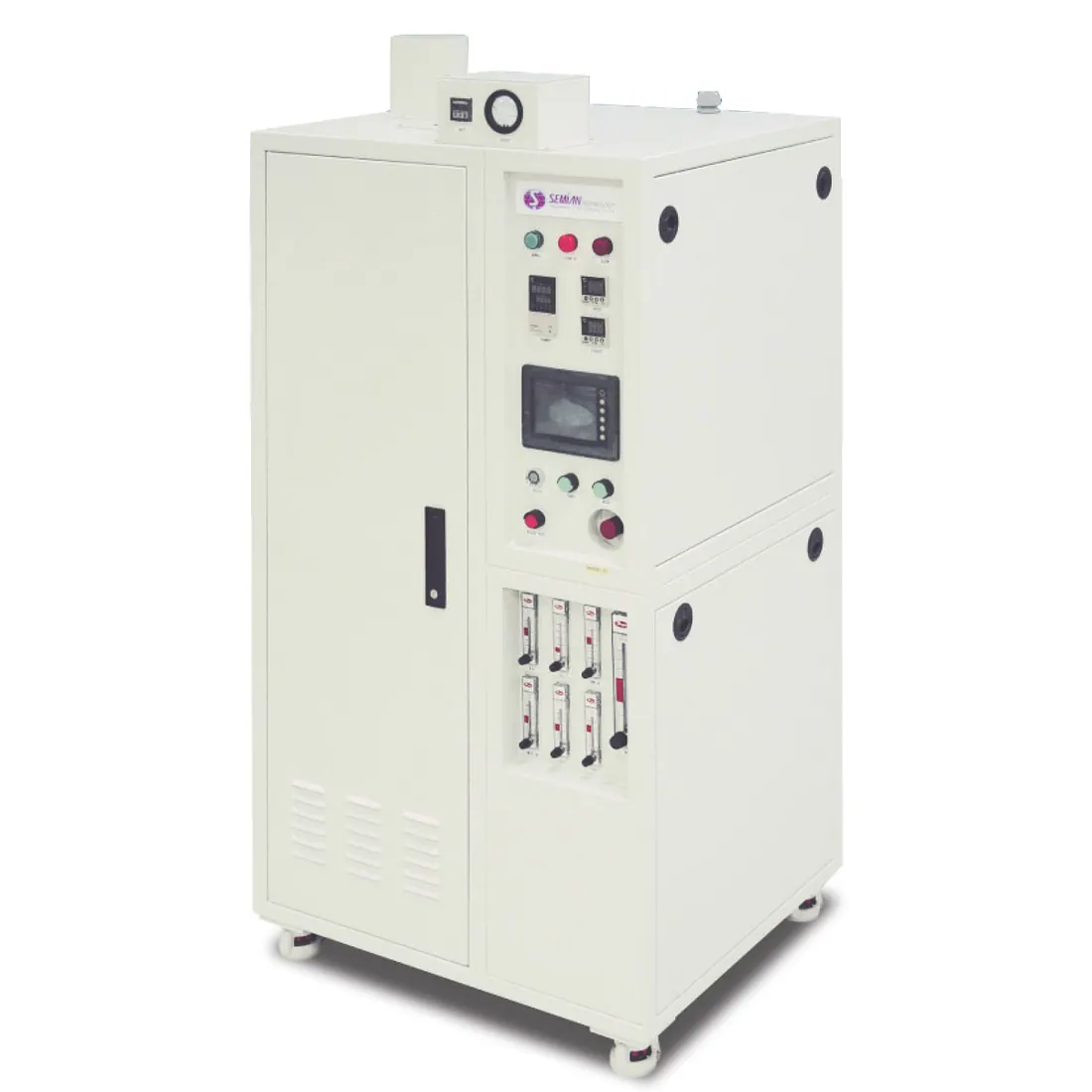

MIDAS-II
Brand: Semian | Category: Scientific & Laboratory Equipment
Electrically heated process-gas treatment system using a reaction chamber and cooling stages. The cabinet accepts up to two process-gas inlet ports. Ask Semian to confirm the gas recipe, flow envelope, cooling-water and clean-dry-air requirements for the proposed configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | 200 SLM |
| Gas inlet | NW40, 1 to 2 port |
| Electrical power consumption | 10.5 kW |
| Heater power consumption | 9.9 kW |
| Voltage/phase | 208V 3~ 50/60Hz 40A |
| Specification | Dimensions 800 (W) x 700 (D) x 1670 (H), weight 350 kg |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Semian equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
