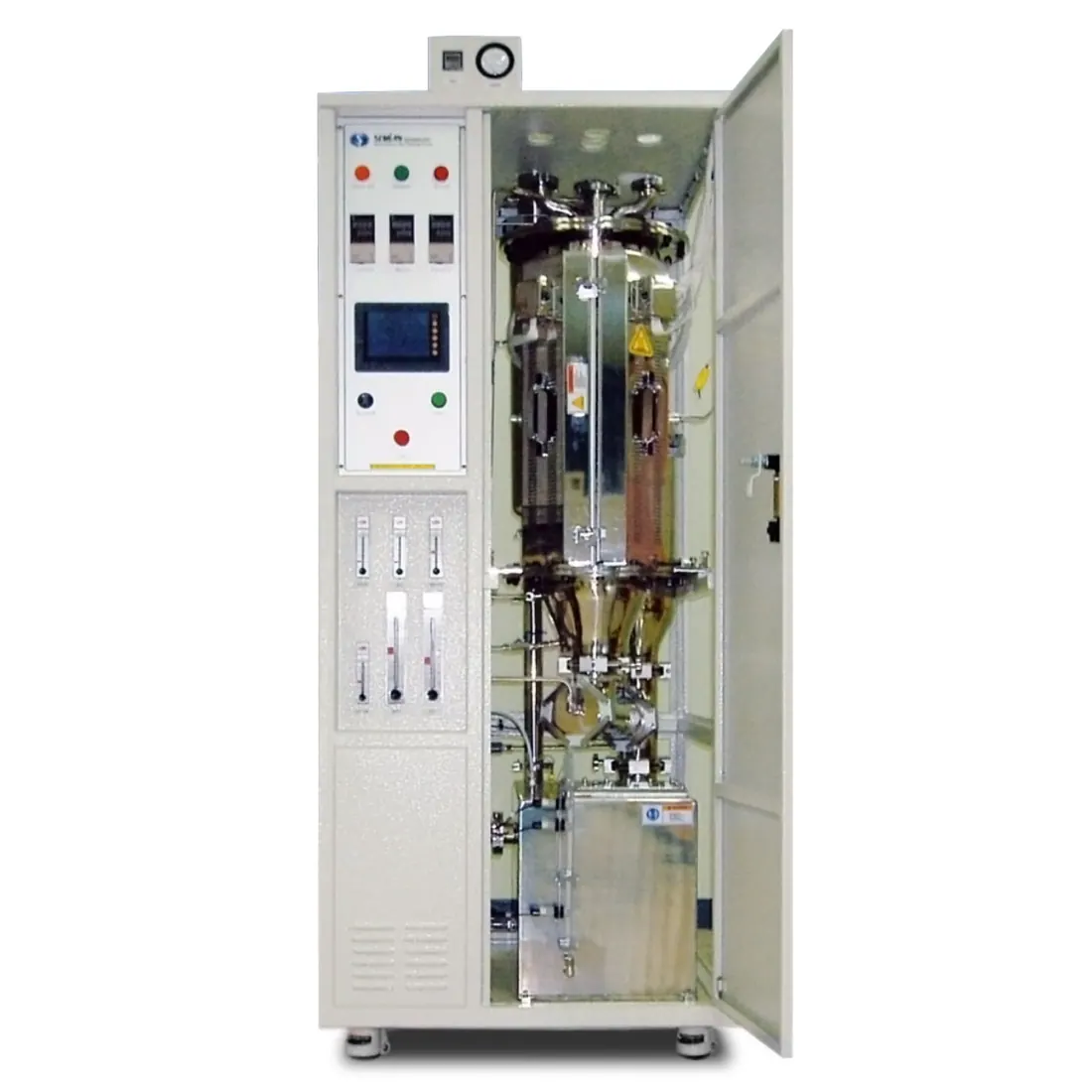

SBW 200-CE
Brand: Semian | Category: Scientific & Laboratory Equipment
Burn and wet scrubber rated for 400 SLM of total gas treatment, with a 6 kW heater stage followed by water scrubbing. Up to four NW40 inlet ports allow one unit to serve several process chambers, and waste water leaves through a VP40 PVC union.
Technical Specifications
| Parameter | Value |
|---|---|
| Total gas treatment volume | 400 SLM |
| Gas inlet | NW40, 1 to 4 port |
| Gas exhaust | NW63, 1 port, -25 to -75 mmH2O |
| Electrical power consumption | 7 kW, heater 6 kW |
| Voltage/phase | 208V 3N~ 50/60Hz 20A |
| Specification | Dimensions 800 (W) x 850 (D) x 2000 (H), weight 410 kg |
